Chloride content in concrete directly accelerates corrosion of reinforcing steel, disrupting protective oxide layers and causing localized rust formation. Chloride concentrations exceeding 0.4% by mass of cement trigger corrosion of reinforcement, reducing structural durability and leading to significant steel cross-section loss. Detection and quantification of chlorides is essential for safeguarding infrastructure lifespan.

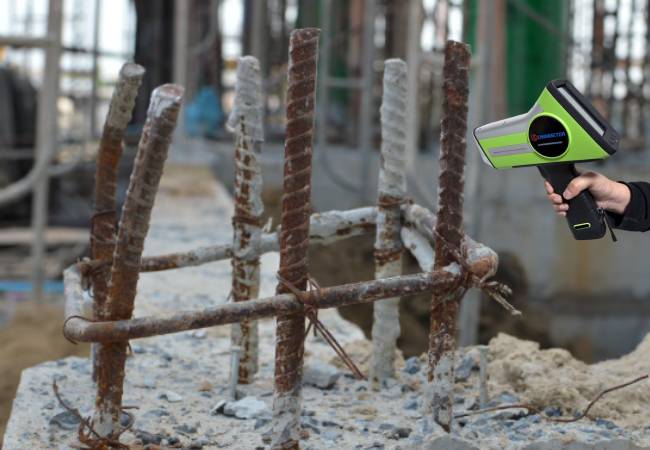

chloride content in concrete
*
Mechanisms of Chloride Corrosion
Chloride ions penetrate concrete through diffusion, capillary absorption, and convection. Surface exposure, cracks, or coating degradation accelerate chloride ingress. Concentration gradients drive chloride migration. Microcracks from mechanical loads alter transport pathways and increase corrosion risk.
Chloride accumulation at the steel-concrete interface promotes localized depassivation. The passive oxide film breaks, enabling corrosion initiation. The threshold chloride content for corrosion depends on concrete pH and permeability. Research shows corrosion initiates at chloride concentrations as low as 0.2–0.4% by mass of cement when permeability is high.

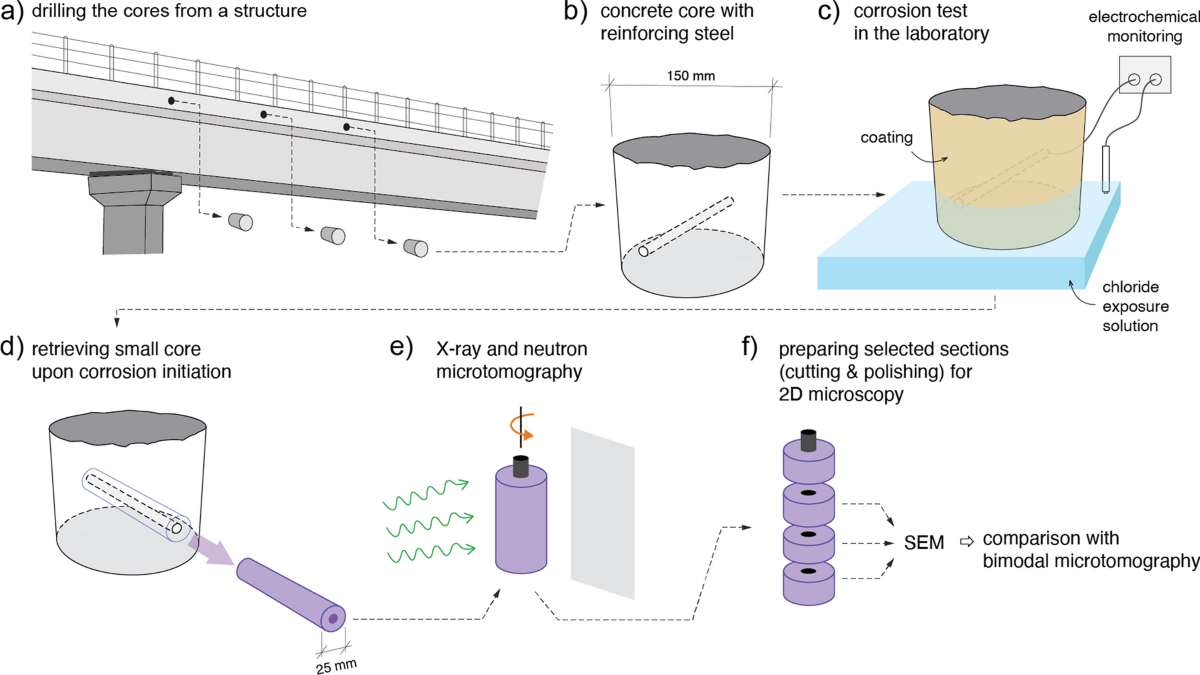

Recent bimodal neutron and X-ray microtomography reveal microstructural rust formation and loss of steel-concrete bond.
Permeability reduction slows chloride transport and extends reinforcement durability. XRF metal analyzer for concrete, including Lonnmeter, provides non-destructive chlorine elemental analysis, quickly identifying areas at risk for corrosion of reinforcing steel in concrete.
Chloride-induced corrosion of steel in concrete
*
Corrosion Resistant Reinforcement Solutions
Chromium (Cr) and rare-earth (RE) alloying in rebar significantly reduces corrosion of reinforcing steel in concrete under chloride exposure. Research on HRB400 rebar demonstrates that Cr contents above 0.5% and RE enhancements transform MnS into RE–Al–O–S inclusions enveloped by MnS shells, slowing localized acidification and minimizing “occluded cell” corrosion propagation. The result is lower corrosion current densities and improved passive film stability, measurable even at chloride concentrations above 0.6% by weight of cement—representing a 30–50% reduction in corrosion rate compared to plain rebar under identical conditions (Nature Communications, 2026).
Practical deployment includes scandium or cerium alloying, offering noticeable enhancements in mechanical strength and long-term durability for infrastructure in marine and deicing salt environments. Cost and RE supply constraints influence market penetration but reduce life-cycle repair needs.
Tests increasingly confirm that combining steel fibres with rebar cuts crack development and corrosion rate, especially in elevated chloride content in concrete. Hybrid reinforcement extends time-to-crack initiation and improves load-carrying capacity retention after exposure (MDPI, 2025).
Select reinforcements based on chloride-induced corrosion risk analysis and project lifecycle to avoid substantial structural degradation. Chlorine elemental analysis using XRF metal analyzer for concrete, such as the Lonnmeter device, supports non-destructive testing of concrete reinforcement to pinpoint solute and fibre effectiveness, ensuring corrosion prevention in reinforced concrete and maximizing service life.
Chlorine Elemental Analysis and Light Element Analysis in Concrete
Quantifying chlorine and light element content is critical for corrosion prevention in reinforced concrete. Chloride ions above 0.2–0.4% by cement weight trigger passivation loss and rapid corrosion of reinforcing steel, accelerating structural degradation and maintenance costs. Analytical determination methods separate into destructive.
Destructive methods deliver high accuracy but require core extraction and labor-intensive laboratory analysis, causing service disruption and irreversible sample loss. Non-destructive testing, using XRF analysis for corrosion detection or field XRF metal analyzer for concrete, enables rapid, in situ chlorine and light element analysis without sample destruction. The Lonnmeter XRF analyzer measures Mg, Al, Si, S, K, Ca, and Cl in solid concrete, providing detection limits under 50 ppm for Cl. Results support selection of corrosion resistant reinforcement bars and tracking the efficacy of corrosion inhibitors for steel reinforcement. Advanced workflows using XRF maximize long-term durability of reinforced concrete by detecting chloride induced corrosion in concrete structures early, guiding targeted intervention and resource allocation.
Advanced Detection & Quantification Methods for Chloride Content
Laboratory assessment uses volumetric titration, ion-selective electrodes, and potentiometric methods, delivering high sensitivity for chloride content in concrete and reinforcing steel. These techniques risk sample destruction, labor intensity, and limited spatial mapping in in situ conditions. Field microelectrode probes enable localized detection but struggle with quantifying trace chlorides and light elements.
XRF metal analyzers, especially the Lonnmeter, provide non-destructive, rapid multi-element analysis on solid concrete and rebar specimens. The Lonnmeter detects chlorine and light elements (Mg, Al, Si, S, K, Ca) with sensitivity at ppm levels, offering crucial insight for corrosion resistant reinforcement bars and risk evaluation. Its robust software distinguishes trace chloride-induced corrosion in concrete structures, supporting critical corrosion prevention in reinforced concrete.
Integration of innovative imaging techniques, like XRF, multi-modal tomography, and advanced elemental mapping, reveals both bulk chloride content and microstructural corrosion sites. Combined, these methods assess corrosion inhibitors for steel reinforcement and support long-term durability of reinforced concrete.
Promoting the Lonnmeter XRF Analyzer for Chloride Content Assessment
Lonnmeter XRF analyzers deliver rapid, non-destructive chlorine elemental analysis crucial for assessing chloride content in concrete. Their high sensitivity detects chlorine and light elements (Mg, Al, Si, S, K, Ca) at levels as low as 0.35–1% Cl, facilitating accurate quantification of trace chlorides that determine corrosion risk and durability of reinforced concrete structures.
Portable design permits onsite analysis, enabling engineers to conduct real-time elemental screening on solid concrete or rebar samples and promptly identify zones prone to chloride induced corrosion in concrete structures. Robust software interfaces streamline workflows, displaying multi-element results for fast project decisions on corrosion resistant reinforcement bars selection.
Lonnmeter XRF technology avoids radioactive sources, requiring minimal sample preparation and providing multi-elemental detection needed for comprehensive corrosion prevention strategies. Requesting a quote allows tailored analyzer configuration, training support, and technical consultation, optimizing non-destructive testing of concrete reinforcement for long-term durability of reinforced concrete and effective corrosion inhibitors for steel reinforcement.
Frequently Asked Questions (FAQs)
What is the importance of measuring chloride content in concrete?
Accurate quantification of chloride content in concrete is critical to assess corrosion risk for reinforcing steel and to predict service life. Chloride-induced corrosion causes approximately 40% of global reinforced concrete failure. Laboratory data show corrosion initiates when chloride concentration exceeds 0.4% by cement weight. Profiling chloride ingress enables targeted maintenance and cost reduction.
How do chloride ions cause corrosion in steel reinforcement?
Chloride ions penetrate concrete, reaching the passive oxide layer on steel. This disrupts steel passivation and initiates localized pitting corrosion. The result is rust formation, steel diameter loss, cracking, and spalling.
Can fibres improve corrosion resistance alongside rebar in concrete?
Studies report combined use of fibres and rebar increases time-to-corrosion by up to 40%, enhancing the long-term durability of reinforced concrete structures.
What makes the Lonnmeter XRF analyzer ideal for concrete testing?
The Lonnmeter XRF metal analyzer provides fast, non-destructive, multi-element analysis of solid samples. It achieves a detection limit of 10 ppm for chlorine and quantifies light elements (Mg, Al, Si, S, K, Ca) critical in identifying early-stage corrosion, optimizing corrosion prevention strategies.
Are advanced reinforcements like Cr and RE alloys more corrosion resistant?
Chromium and rare-earth (RE) modified reinforcement bars increase corrosion resistance by over 50% compared to standard steel, especially in saline environments, as confirmed in lab tests.
Why is concrete permeability important for corrosion prevention?
Lower permeability restricts chloride migration, maintaining steel passivation and delaying corrosion onset beyond typical service life cycles.
How does XRF technology differ from traditional chemical tests for chloride analysis?
XRF analysis requires no sample dissolution or acids, unlike wet chemistry. It is rapid, on-site, and offers simultaneous multi-element chlorine elemental analysis—helpful for non-destructive testing of concrete reinforcemen.
