Density and viscosity serve as critical parameters in 3D cement printing, leaving a direct impact on the printability of the material, the structural integrity of the final product, and the adhesion between printed layers. Inline density and viscosity monitoring in process ensures consistent quality throughout the printing workflow.
What is 3D Cement Printing?
3D cement printing, also known as additive manufacturing of concrete, uses automated systems to deposit cementitious material layer by layer, building structures directly from digital models. Unlike traditional casting methods, 3D concrete printing processes allow the creation of complex shapes and geometries not feasible with conventional formwork. Automated concrete construction methods—such as robotic arms, gantry systems, and extrusion-based print heads—move precisely based on computer instructions. These systems extrude fresh cementitious mixtures through a nozzle, constructing 3D printed concrete structures with controlled layer heights and patterns.

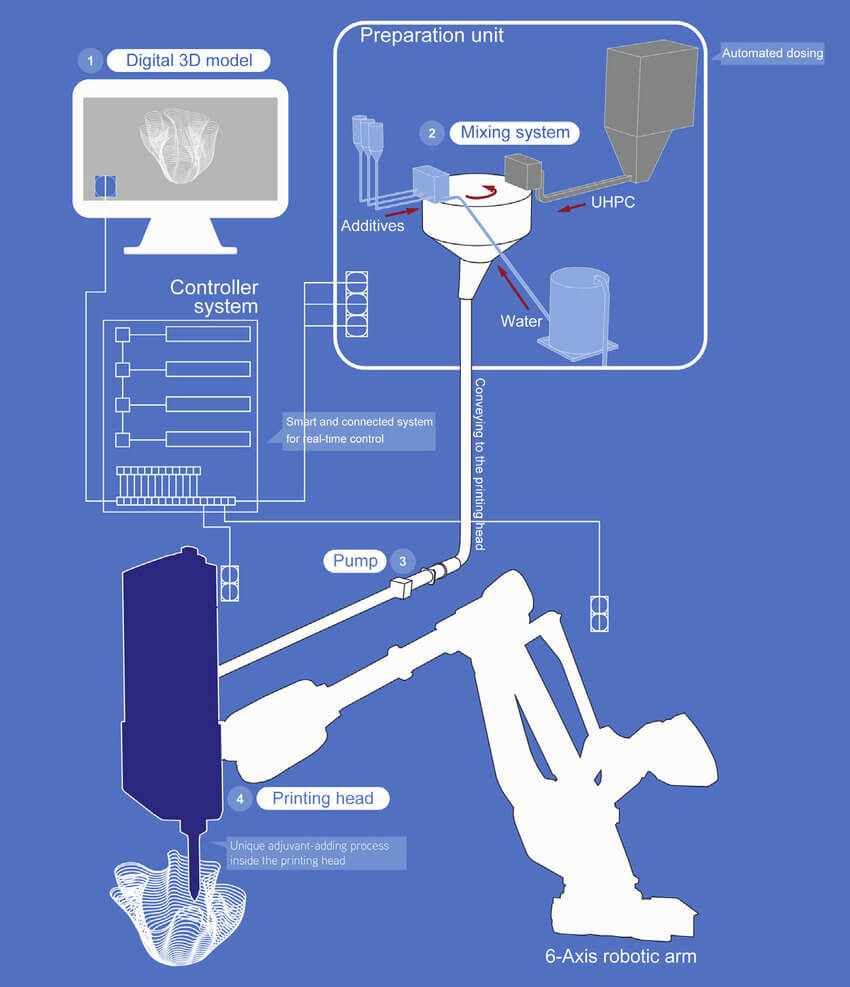

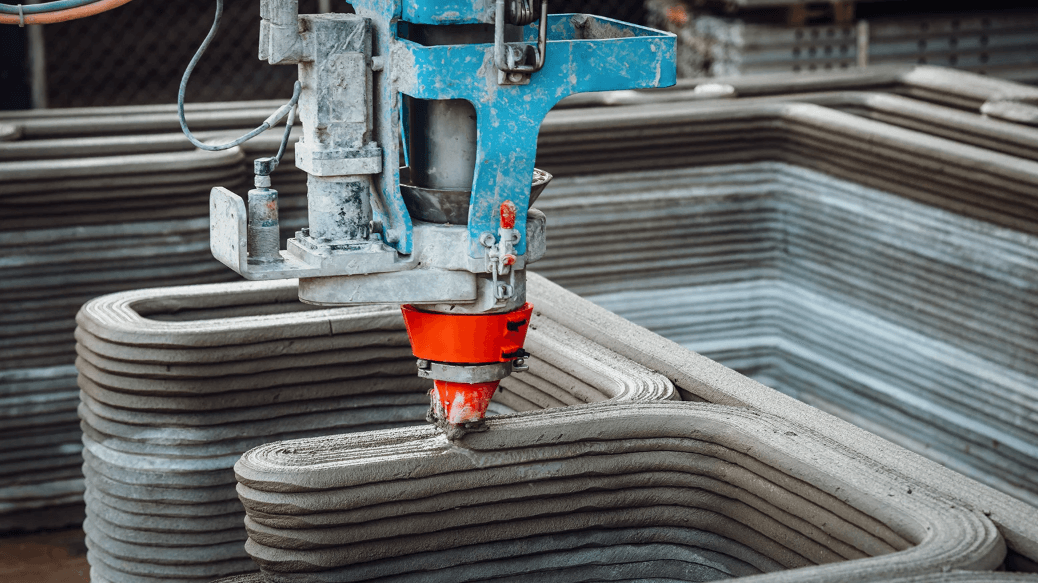

3D Concrete Printing
*
Significance of Process Density & Viscosity Control
The success and quality of the 3D concrete printing process rely on careful control of key process parameters, notably density and viscosity. These parameters are central to the printability and buildability of advanced mixtures.
Density: Real-time density affects the strength and integrity of 3D printed concrete. Inadequate layer filling results in under-filled voids, weakening interlayer bonds and producing poor surface finishes. Consistent layer density ensures robust mechanical properties and a uniform geometry across the printed element.
Viscosity: The viscosity of the fresh mix influences extrudability, layer stability, and surface quality. If viscosity is too high, extrusion can stall or require excessive pressure, risking equipment damage. Too low, and the mix loses shape after deposition, leading to layer collapse and flawed geometry. Ideal viscosity, often tuned with viscosity-modifying agents or nano-additives, supports effortless extrusion and stable, well-formed layers.
The interplay between density and viscosity directly shapes critical print attributes:
- Buildability: High buildability means each deposited layer can support subsequent layers without slumping. Optimal density and tailored viscosity enhance layer stacking, while excessive fluidity leads to deformation and instability.
- Mechanical Properties: Print-induced anisotropy makes mechanical strength direction-dependent. Densely packed, consistently viscous layers yield higher compressive strength and better modulus of elasticity compared with mixtures lacking these characteristics.
- Surface Quality: Surface finish quality hinges on the rheological behavior of the mix. Low viscosity improves surface smoothness but can compromise buildability if taken too far. Achieving the right viscosity and yield stress, typically in the 1.5–2.5 kPa range, balances appearance with structural performance.
- Printability and Interlayer Bonding: Thixotropy—a material’s ability to recover viscosity after shear—enables layers to adhere without merging excessively, supporting strong interlayer bonds and sharp geometric fidelity.
Variation in density and viscosity affects not just engineering performance, but also the feasibility of mass-customized, automated construction. Achieving uniformity and repeatability across concrete 3D printing advantages and applications requires tight, adaptive control of these core process parameters.
Key Material Properties in Additive Manufacturing Concrete
Density in 3D Cement Printing
Material density is a cornerstone factor in the 3D concrete printing process, directly affecting layer stability and print geometry. When printing concrete structures, higher mix density promotes improved interlayer cohesion, which is essential for preventing layer separation and deformation. The structural build-up of freshly deposited layers, driven by yield stress and stiffness increases over time, determines how well subsequent layers adhere and stack. If the previous layer stiffens before the next is deposited—outside the maximum operational time (MOT)—the bond may weaken, resulting in poor layer stability or visible defects.
Optimized nozzle offset, filament overlap, and the use of supplementary cementitious materials (SCMs) like fly ash or slag can mitigate undesirable porosity and anisotropy, boosting mechanical integrity and geometric precision of the printed structure. For example, research shows that fine-tuning deposition intervals and overlaps minimizes voids and ensures a continuous printed filament, crucial for durable 3D printed concrete structures.
Mix density also plays a pivotal role in the long-term strength and durability of additive manufacturing of concrete. Incorporation of SCMs such as fly ash, rice husk ash, and ground granulated blast-furnace slag, or using alkali-activated artificial aggregates, modifies both fresh and cured densities, often resulting in higher compressive and flexural strength. With optimized density, concrete 3D printing techniques achieve reduced permeability, better resistance to chemical attack, and extended service life, especially when aggregates and curing practices are tailored for the application.
Lower porosity, often achieved by the judicious use of SCMs, is consistently linked with increased strength and durability in advanced 3D printing concrete materials. For instance, mixes with high SCM content typically demonstrate improved performance at 28, 60, and 90 days post-curing, confirming the value of density-focused design for both immediate stability and long-term function.
Viscosity Control in Cement Additive Manufacturing Process
Printability in cement additive manufacturing hinges on precise viscosity control. Viscosity governs the mix flowability; too low and the material slumps, too high and pumpability suffers, disrupting the cement additive manufacturing process. Printability requires a balance: the mix must pass easily through pump systems and nozzles, then quickly regain enough viscosity—via thixotropic or shear-thinning behavior—to retain its printed form.
Nozzle extrusion consistency and shape retention depend on maintaining a narrowly defined viscosity range. Deviations—either under- or over-modifying viscosity—result in bead geometry irregularity, layer deformation, and suboptimal interlayer bonding. Computationally optimized nozzle designs coupled with force-controlled extrusion systems dynamically adjust the printing environment, ensuring every filament maintains the intended profile throughout complex concrete 3D printing applications.
Rotational rheometers and inline monitoring tools provide essential feedback during printing, enabling the operator to measure and adjust the viscosity in real time. This direct approach resolves problems like unexpected nozzle clogging or layer collapse before structural issues arise.
Mix Design and Its Impact on Density and Viscosity
Critical Mix Components
Effects of Binder Selection, Water–Cement Ratio, and Admixtures
Binder selection forms the base of 3D cement printing technology, controlling key properties in fresh and hardened states. Ordinary Portland cement (OPC), quick-setting cement (QSC), and blended binders are used to tune density and viscosity. Increasing OPC content directly raises the density and mechanical strength of the final print. For instance, binary mixes featuring 35% OPC and 5% QSC optimize both density and print strength, suitable for high-quality printed elements. Polymer additives such as urethane acrylate (UA) are leveraged in some advanced 3D printing concrete materials; they increase mix viscosity, which improves shape retention but may affect particle dispersibility during the cement additive manufacturing process.
Water–cement (W/C) ratio is pivotal in additive manufacturing of concrete. Lower ratios improve density and strength—but if too low, pumpability suffers, leading to clogs in automated concrete construction methods. Even a small (15–20%) shift in the W/C ratio alters yield stress and apparent viscosity, thereby impacting printability and structure performance. Superplasticizers allow a reduction in water content without compromising flow, achieving smoother operation for concrete 3D printing techniques. Viscosity-modifying admixtures (VMAs) offer further control, boosting cohesion and resistance to segregation—vital traits for successful layer stacking in concrete additive manufacturing methods.
Aggregate Grading and Particle Packing for Optimal Flow
Aggregate grading and the theory of particle packing are foundational for print success. Uniform aggregate distribution minimizes void content, which is crucial for robust 3D printed concrete structures. X-ray computed tomography reveals that larger particles may migrate toward the nozzle or container walls, raising local porosity and potentially reducing consistency. Careful management of aggregate size and extrusion speed helps maintain uniformity and stable mass flow rates.
During the 3D concrete printing process, optimized aggregate grading minimizes both segregation and the risk of nozzle clogging—directly impacting both print speed and finished structure quality. Combined with binder and water adjustments, this approach supports the robust workflow of automated and additive manufacturing concrete applications.
Mix Optimization Strategies
Balance Between Pumpability and Buildability
Balancing pumpability and buildability is essential to effective additive manufacturing concrete applications. Pumpability ensures the mix is smoothly delivered through hoses and print nozzles without segregation or blockages. Buildability describes the ability of freshly printed layers to support subsequent layers without excessive deformation or collapse.
Key strategies for balance include:
- Adjusting Paste Volume: Too much paste can cause segregation and reduce buildability; too little hampers pumpability.
- Fine-Tuning Particle Size and Binder Content: Proper aggregate and binder selection enhances layer-to-layer adhesion and stability.
- Automation Via Design of Experiments: Techniques like D-optimal design streamline trial-and-error, quickly honing in on optimal mix proportions for additive manufacturing of concrete.
These principles are integrated into concrete 3D printing advantages such as cost reduction, increased durability, and automated workflow improvements.
Techniques to Avoid Clogging and Defects in Printed Layers
Achieving a defect-free print in advanced 3D printing concrete materials requires meticulous control:
- Optimize Rheology with Superplasticizers and VMAs: These chemical admixtures precisely adjust flow for the desired pressure-driven extrusion, minimizing risk of blockage.
- Real-time Monitoring of Extrusion Parameters: Monitoring pressure, flow, and nozzle behavior permits on-the-fly adjustments, reducing the danger of clogging, especially with variable aggregate content or recycled additives.
- Control Aggregate Migration: Prevent large aggregate particles from accumulating near nozzle walls, which can raise local porosity and cause inconsistency.
The use of waste materials like ground granulated blast furnace slag and steel slag requires attention to secondary effects—such as changes in flexural strength or thixotropic response—when targeting sustainable 3D printed concrete structures.
Combined, these mix optimization strategies make it possible to meet the complex demands of contemporary automated concrete construction methods, ensuring both process reliability and finished product quality.
Learn About More Density Meters
More Online Process Meters
Real-Time Monitoring Techniques in the 3D Concrete Printing Process
Real-time monitoring in the 3D concrete printing process relies on advanced instrumentation tailored to the unique properties of cementitious materials. In-line viscometers are integrated directly into the material flow to acquire continuous, real-time viscosity and density readings.
Pressure transducers further bolster process control. They sense pressure changes within pumps and nozzles, translating these into electrical signals. Operators can use this data to identify inconsistencies related to batch composition, equipment wear, or blockages—key factors impacting quality in additive manufacturing of concrete.
Inline densitometry solutions further enable real-time density tracking during the cement additive manufacturing process. These systems are integrated directly into feed lines or extruders, ensuring the bulk and microstructure of the 3D printed concrete structures remain within specification.Automated alerts from such systems can prompt immediate formulation adjustments or flow corrections, preventing defects and improving the efficiency of concrete additive manufacturing methods.
Data Integration and Process Control
Robust data integration is central to leveraging sensor outputs for process gains in the 3D cement printing technology landscape. Real-time data streams from in-line viscosmeters, pressure transducers, and densitometers are now commonly linked with digital printing parameters, such as extrusion speed, path trajectory, and material feed rate. This linkage enables adaptive management: the digital controller automatically adjusts operational variables in response to sensor-detected fluctuations, ensuring process stability and product quality.
Quality Assurance Through Density and Viscosity Control
Ensuring Print Accuracy and Structural Integrity
Precise control of density and viscosity is central to the 3D concrete printing process. Deviating from optimal rheological thresholds leads to specific print defects:
- Porosity: When viscosity is too low, material flow increases, impairing interlayer bonding and leading to internal voids. Porous regions compromise both the load-bearing capacity and durability of 3D printed concrete structures.
- Deformations: Incorrect density or dynamic yield stress causes layer sagging or slumping. High viscosity impedes extrusion; low viscosity results in poor shape retention, causing geometric inaccuracies and warping.
- Surface Imperfections: Excess fluidity causes uneven layer surfaces, while insufficient viscosity yields rough textures and poorly defined edges. Maintaining tight control over rheological properties avoids these surface defects, enhancing overall print aesthetics and performance.
Critical thresholds vary with specific cement additive manufacturing processes:
- Density tolerance: Should typically be maintained within 2% of target values to prevent sedimentation and layering inconsistencies—crucial for automated concrete construction methods.
- Viscosity range: Plastic viscosity values must balance extrudability and buildability. For most advanced 3D printing concrete materials, dynamic yield stress of 80–200 Pa and plastic viscosity of 30–70 Pa·s enable both accurate extrusion and rapid shape retention. Thresholds shift based on mix design, nozzle geometry, and printing speed.
- Thixotropy: The ability of the mix to recover viscosity rapidly after shearing supports structural integrity during and after deposition.
Failure to operate within these critical windows introduces risks for deformation, discontinuities, and compromised mechanical strength across concrete additive manufacturing methods. Precision monitoring helps optimize additive manufacturing concrete applications by reducing error rates and boosting structure reliability.
Enhancing 3D Printing Efficiency and Sustainability
Material Savings and Waste Reduction
Advanced 3D cement printing technology and additive manufacturing of concrete thrive on process precision. Real-time monitoring of density and viscosity directly impacts material savings. Systems integrating ultrasonic pulse velocity (UPV) sensors and machine learning predict and maintain material properties, allowing only the necessary amounts to be extruded with each pass. This minimizes wastage during the additive manufacturing concrete process by matching delivered material to the actual geometric and structural requirements of each layer.
Environmental Considerations
Optimized process control doesn’t just save materials—it also slashes environmental impact across the automated concrete construction methods spectrum. Real-time feedback minimizes the carbon footprint by reducing the cement and energy required for 3D printed concrete structures. Cement production remains the largest single-source industrial source of CO₂, contributing about 8% of global emissions. By using sensor-driven and predictive controls to minimize overruns and avoid reprints, projects can cut both direct and embedded emissions.
Adaptation to Local and Project-Specific Conditions
Tailoring Mix and Process for Site Realities
Adapting the 3D concrete printing process to local and project-specific conditions is essential to maximize structural integrity, longevity, and sustainability. Each site presents unique challenges such as climate, seismic risk, material sourcing, and design goals.
Adjustments for Climate
Ambient temperature and humidity significantly impact cement hydration and layer bonding. Fast drying or incomplete curing at deposition interfaces leads to cold joint formation, undermining strength. Advanced computational models simulate drying kinetics, hydration, and environmental exposure to actively anticipate these challenges. By dynamically controlling water-to-cement ratios and incorporating admixture dosage adjustments, teams can minimize cold joints and maintain robust interlayer adhesion, even in extreme climates. For example, modular lignin-based admixtures derived from biomass provide tailored water reduction and rheological control under varying temperature and humidity, enabling printing consistency and lower carbon footprint.
Wind, freeze–thaw cycles, and rapid cooling also threaten print quality outdoors. High evaporation rates, accelerated by wind, can induce weak layer bonds and surface defects. Strategies include controlled print environments, shielding structures from wind, and using admixtures to promote slower setting and enhanced durability. This is supported by freeze–thaw durability tests showing that admixtures and print orientation adjustments can significantly improve resistance to environmental stressors.
Adaptations for Seismic Activity
Seismic resilience in 3D printed concrete structures is achieved using fiber reinforcements. Steel fibers incorporated into the printable mix can double tensile and flexural strength, while continuous fiber integration during fabrication aligns reinforcement with critical stress paths. Multi-axis 3D spatial printing enables curved, continuous fiber placement, boosting failure load and stiffness dramatically—directly targeting demands of earthquake-prone regions. These techniques result in a marked improvement in interlayer cohesion and overall seismic resistance, with proven increases in mechanical properties relevant to real-world seismic threats.
