Consistent viscosity is a signature of high-quality mayonnaise. It governs texture, spreadability, mouthfeel, and product stability from batch to batch. In commercial production, reliable mayonnaise viscosity measurement ensures that each jar provides the same consumer experience, meeting regulatory and sensory standards. Deviations in viscosity can lead to off-spec products—either “mayonnaise too thick” with a firm, unspreadable texture, or “mayonnaise too thin” that lacks body and stability, risking oil separation or spoilage.
Understanding Mayonnaise and Its Emulsion Structure
Mayonnaise is fundamentally an oil-in-water emulsion, a system where dispersed oil droplets are surrounded by water and stabilized by emulsifiers. In the context of mayonnaise production, this microstructure is maintained by reducing oil droplet size and establishing a strong interfacial film. The oil phase typically constitutes 70–80% of the product, but remains suspended due to these stabilizing mechanisms.

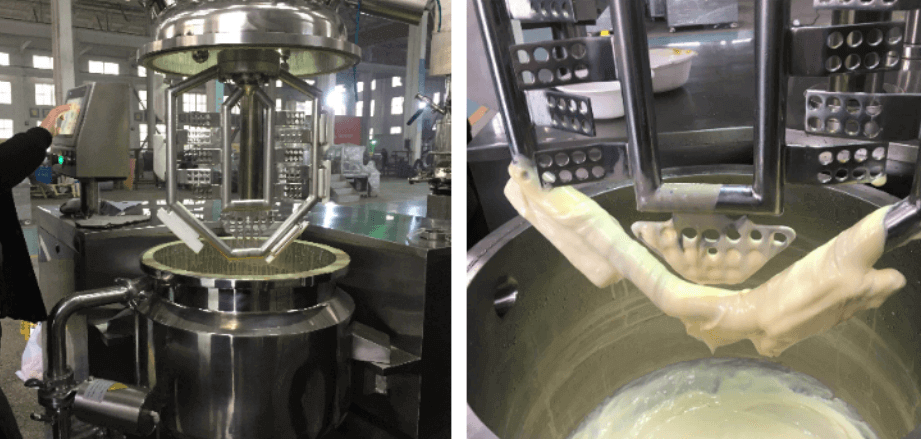

Mayonnaise Production Line/Equipment
*
Key Ingredients and Their Structural Functions
Egg Yolk: Egg yolk is rich in phospholipids (especially phosphatidylcholine) and functional proteins such as livetin and lipovitellin. These components naturally coat oil droplets, reduce interfacial tension, and create robust films, preventing coalescence and phase separation. Emulsifying efficiency can be optimized using enzymatic treatment—such as phospholipase hydrolysis or targeted thermal processing—to increase protein unfolding, surface hydrophilicity, and solubility, further enhancing stabilization and thermal resilience.
Oil: The oil provides the dispersed phase, creating the characteristic creamy texture of mayonnaise. The choice of oil type (e.g., soybean, canola, sunflower) affects sensory attributes and can interact with emulsifiers to impact droplet formation and stability.
Water: Acts as the continuous phase. Sufficient water ensures proper dispersion of oil droplets and allows optimal emulsifier distribution throughout the system.
Acid (typically acetic/citric acid): Acidifies the mixture (target pH ≈ 3.5–4.0), increasing protein solubility and supporting emulsion stability. The lowered pH also plays a role in preservation. Sodium chloride can work synergistically with acid to tune protein–oil interactions, affecting shelf life and texture.
Alternative Emulsifiers: Modern mayonnaise formulations often include modified starches, hydrocolloids (e.g., flaxseed mucilage), and plant-based proteins. These alternatives serve as emulsifiers and texture modifiers, especially in vegan and low-fat mayonnaise.
Microstructure Insights
The emulsion’s physical stability is driven by the following factors:
- Decreased oil droplet size, which lowers the likelihood of aggregation.
- Establishing a viscoelastic network, often via combined protein and polysaccharide systems, that traps oil droplets and impedes their movement.
- Use of Pickering emulsions—where solid particles stabilize the oil–water interface—further improves shelf stability and phase homogeneity.
Viscosity: Central to Spreadability and Consumer Appeal
Viscosity measurement is crucial in the mayonnaise production process, directly affecting spreadability, product consistency, and consumer sensory experience. Appropriate viscosity ensures mayonnaise is neither too thick (which impedes spreading and may feel unpleasantly stiff) nor too thin (which leads to runoff and poor creaming). The internal network formed by emulsifiers, proteins, and stabilizing agents determines the mayonnaise’s yield value and thixotropic behavior—quantifiable via rheometers and emulsion viscometers.
Sensory and Physical Characteristics
- Creaminess and mouthfeel: Strongly correlated with viscosity and lubricity—these properties underpin the classic appeal of mayonnaise, as measured by emulsion viscosity testing.
- Spreadability: High viscosity and optimized droplet network slow flow and support easy application, but excessive thickness reduces sensory acceptance.
- Best practices for mayonnaise consistency include balancing oil droplet dispersion, acidification, and emulsifier selection, allowing producers to control mayonnaise viscosity and deliver optimal texture for consumer satisfaction.
For product developers, understanding the interplay of ingredients, processing, and microstructure enables targeted improvement of mayonnaise texture and stability, while supporting best practices for desired consistency and enhanced shelf life.
Traditional vs. Inline Viscosity Measurement Techniques
Overview of Classic Offline Testing Methods
Traditional mayonnaise viscosity measurement relies heavily on offline, laboratory-based techniques, with several established tools in widespread use:
- Helipath Stand Viscometer: This method employs a spindle that moves vertically through the mayonnaise sample, reducing channelling and ensuring more consistent results. It’s a staple for semi-solid foods due to its ability to test across the body of the sample rather than at the surface or edges, which can distort readings.
- Vane Rheometry: Featuring a multi-bladed, rotating geometry, the vane rheometer addresses issues like wall slip and sample disturbance. It delivers more accurate assessments of high-viscosity, yield-stress materials, allowing processors to differentiate textural properties in both regular and reduced-fat formulations. This technique is widely used in comparative studies for its consistent data output.
- Motorized Stand Adapter with T-Bar Spindle: Case studies report precision improvements using this arrangement. The spindle “travels” through the bulk material, capturing representative viscosity profiles.
- Brookfield Rotational Viscometer: When assessing recipe changes—like the addition of pumpkin seed oil, or examining processing impacts like shear at various rotor speeds—the Brookfield viscometer provides reliable comparative data. This answer is frequently used by R&D labs and quality assurance for both classic and reformulated mayonnaise.
Each method involves extracting a sample from the production stream and preparing it for measurement in a controlled laboratory environment.
Limitations: Lag Time, Sample Distortion, Operator Dependence
Offline viscosity testing has several pronounced drawbacks that impact process control and product consistency:
- Lag Time: The delay between pulling a sample from the line and receiving results often means quality issues aren’t caught until after multiple batches have been produced. This can result in significant waste or expensive product recalls if viscosity falls out of specification.
- Sample Distortion: Handled samples can change physically—temperature, structure, even subtle oxidation—before laboratory testing takes place. These changes lead to skewed viscosity readings and undermine decision making.
- Operator Dependence: Offline modes rely on personnel for sampling, measurement, and data recording, introducing opportunities for error and inconsistency. Fatigue, technique, and experience all play roles in the reliability of results.
Batch processes, especially in continuous mayonnaise production, suffer under these constraints, where process drift or ingredient variation can quickly translate into entire lots of “too thick” or “too thin” product—forcing costly rework or waste.
The Value of Inline/In-Situ Measurement for Real-Time Control
Inline viscosity measurement directly addresses offline method shortcomings:
- Real-Time Monitoring: Sensors mounted in pipelines or mixing vessels acquire continuous viscosity data. This enables immediate process adjustments, such as changing rotor speed, ingredient ratios, or cooling rates based on actual fluid characteristics.
- Product Consistency and Defect Minimization: Process engineers use inline data to maintain tight viscosity tolerances, reducing incidences of “mayonnaise too thick” or “mayonnaise too thin,” yielding superior texture and adherence to consumer standards.
- Automation and Cost Efficiency: Inline viscometers support dynamic feedback loops with process automation systems. Operational variables can be automatically controlled, minimizing raw material waste, energy consumption, and labor costs; case studies in analogous viscous food products such as ketchup demonstrate ROI within a year.
- Compliance and Traceability: Automated data acquisition assists with meeting regulatory requirements. All measurement data can be logged electronically for quality documentation and batch traceability.
- Integration with IoT and Event Data Frameworks: Inline viscometers interface with digital process control architectures, coupling event loggers with sensor streams for deeper process analytics.
Examples:
- Continuous mayonnaise processing lines equipped with inline viscometers calibrated for oil-in-water emulsions rapidly flag viscosity deviations, allowing operators to fine-tune emulsifier dosage or rotor speed before non-conforming product accumulates.
- Automated ketchup manufacturing observed reduced waste and operator intervention by switching from intermittent offline viscosity checks to full-time inline monitoring.
In sum, the shift from traditional offline methods to inline/in-situ viscosity measurement is reforming how mayonnaise production processes are optimized, directly impacting consistency, regulatory compliance, and operational cost—a crucial evolution for demanding, high-throughput food manufacturing environments.
Key Factors Influencing the Viscosity of Mayonnaise
Role of Fat Percentage and Low-Fat Strategies
Fat content is the primary driver of mayonnaise viscosity. Traditional formulations use 70–80% oil to create a thick, spreadable oil-in-water emulsion. This high fat level gives classic mayonnaise its rich, dense texture. As the fat percentage decreases, viscosity drops noticeably, resulting in a thinner product.
To address this, hydrocolloids—such as xanthan gum, guar gum, and locust bean gum—are widely used in low-fat mayonnaise production. These substances build network structures within the aqueous phase, increasing thickness and stabilizing the emulsion even when oil is reduced. Recent studies highlight Dioscorea rotundata (white yam) and konjac glucomannan as effective fat replacers. These hydrocolloids help maintain pH, alter visual attributes (e.g., increased yellowness from yam), and offer improved moisture retention and viscoelastic properties compared to oil alone. This allows for the creation of low-fat or reduced-fat variants that retain key sensory characteristics—addressing consumer health demands while controlling mayonnaise viscosity.
Contrast Between Animal- and Plant-Derived Emulsifiers
Mayonnaise emulsification traditionally relies on egg yolk, which contains phospholipids and proteins (notably LDL and HDL granules) critical for emulsion stability and viscosity. Egg yolk emulsifiers provide high interfacial activity, producing stable, fine-dispersed oil droplets and maintaining the characteristic creamy structure.
Plant-derived emulsifiers, such as pre-gelatinised rice starch granules, are gaining ground. These particles stabilize the emulsion by forming a physical barrier around oil droplets—known as a Pickering emulsion mechanism. Compared to egg yolk, starch granules introduce subtle shifts in rheological behavior, often creating gel-like, shear-thinning characteristics while reducing cholesterol and allergen content. While both systems can reach comparable droplet sizes, starch-based emulsifiers sometimes yield slightly different flow and textural profiles—important for plant-based and egg-free mayonnaise.
Influence of Formulation Particle Size and Mixing Energy
Oil droplet size is a critical parameter in mayonnaise viscosity measurement and control. Emulsions with very fine droplets (1–5 μm) exhibit higher viscosity, increased thickness, and improved texture. Achieving and maintaining this fine dispersion depends on the energy input during mixing. High-shear mixing equipment—such as rotor-stator systems or colloid mills—physically breaks down oil into smaller droplets and ensures uniform distribution throughout the aqueous phase.
The relationship is direct: finer droplets mean greater surface area for emulsifier coverage, resulting in denser packing, higher yield stress, and more robust mouthfeel. Industrial practices focus on programmable emulsification protocols, where mixing speed and duration are tightly regulated to consistently achieve optimal droplet distribution and preferred viscosity. Coarse or uneven droplets will lead to weak, destabilized products that may suffer from phase separation or undesirable mouthfeel.
Effects of Processing Temperature and Duration on Microstructure
Processing temperature and time during the mayonnaise production process play significant roles in both emulsifier functionality and microstructure development. Heating liquid egg yolk (to 61–70 °C for set periods) induces partial protein denaturation, enhancing water and oil binding without causing aggregation. This adjustment in protein conformation yields larger yolk particles that form stronger, more stable emulsions—directly increasing viscosity and shear stress capacity.
For low-fat or plant-based formulations, similar principles apply: temperature control affects the gelling, swelling, and hydration of hydrocolloids, further influencing texture and stability. Precise regulation is critical—excessive heat may degrade emulsifiers or hydrocolloids, whereas insufficient processing may prevent optimal structure formation. Optimal ranges (e.g., 62–68 °C for yolk-based systems) have been found to maximize functional attributes, including viscosity and emulsion stability.
Microstructural assessments using microscopy and rheometry consistently correlate these physicochemical changes with improved stability, higher viscosity, and desirable sensory properties. In summary, the interplay of fat content, emulsifier origin, droplet size, and thermal regime collectively dictates how to measure mayonnaise viscosity and develop best practices for mayonnaise consistency, whether the goal is traditional richness or innovative, health-focused alternatives.
The Role of Viscosity Measurement in the Mayonnaise Production Process
Importance of Consistent Viscosity for Batch Quality
Mayonnaise is a classic oil-in-water emulsion. Maintaining optimal emulsion viscosity is integral to product quality and shelf-life. Factors affecting mayonnaise viscosity include:
- Type and concentration of stabilizers (e.g., xanthan gum, pectin, modified starch)
- Ingredient choices (such as whey powder or inulin for enhanced thickness)
- Oil ratio and droplet distribution
- Processing temperature
Repeatable viscosity control assures steady mouthfeel and avoids costly batch rejections. For example, varying stabilizer ratios significantly alter mayonnaise consistency and emulsion stability, especially in low-fat and alternative formulations. Rheological testing, using tools like concentric cylinder Brookfield rheometers at controlled temperatures (typically 25°C), provides quantitative confirmation of consistent batch quality.
Detecting and Correcting Problems: “Too Thick” and “Too Thin” Mayonnaise
Viscosity deviations may result from errors in ingredient dosing, emulsifier activation, or temperature fluctuations. Common issues and industrial solutions include:
Mayonnaise Too Thick
- Cause: Excess oil or overuse of thickening agents.
- Solution: Gradual addition of lukewarm water during mixing can reduce viscosity without breaking the emulsion. This incremental adjustment prevents overshooting the desired texture and is widely practiced in batch manufacturing. Use of measuring tools helps maintain control over water addition.
Mayonnaise Too Thin
- Cause: Insufficient emulsification, low stabilizer, or incorrect oil-to-water ratio.
- Solution: Add small amounts of boiling water to activate egg lecithin, then re-emulsify. Alternately, blend in extra egg yolk or prepared mayonnaise to thicken. Rapid re-blending restores viscosity and prevents separation.
Industrial systems employ emulsion viscometers and inline viscosity monitors to instantly detect such variations. Immediate, automated feedback helps correct issues before packaging, saving time and resources.
The Need for Reliable, Repeatable Measurement in Manufacturing
Modern sites use inline viscometers and emulsion viscosity testing systems for real-time monitoring. These devices are integrated with control systems, providing constant feedback on consistency during the mayonnaise production process. Rotational viscometers are common for batch checks; computer-vision viscometers—using video analysis—are emerging for high-throughput viscosity assessment, delivering errors below 15% for typical mayonnaise viscosities and supporting process optimization.
Manufacturers also employ best practices such as:
- Temperature-controlled rheological testing, since viscosity is highly sensitive to thermal changes
- Automated data logging for batch traceability
- Routine calibration of measurement equipment
- Sensory and analytical validation of batch texture
These methods allow producers to rapidly stabilize mayonnaise emulsion, improve texture, and uphold product integrity—ensuring every batch meets exacting standards for consistency and quality.
Learn About More Density Meters
More Online Process Meters
Emulsion Viscometers: How They Work and What to Look For
Core Technology and Physical Principles
Emulsion viscometers are engineered to measure the viscosity within complex oil-in-water emulsions like mayonnaise. The physical principles behind these devices address non-Newtonian fluid behaviors, including shear-thinning and yield stress. In mayonnaise production, viscosity changes depending on how force is applied—often decreasing with faster stirring, which reflects reality in mixing, pumping, and filling lines.
The most relevant technologies include:
- Rotational Viscometers: These use a spindle or core element rotated in the emulsion. The torque required for rotation indicates viscosity. This approach is favored for direct, in-situ mayonnaise viscosity measurement because it mimics industrial mixing.
- Vibrational (Resonant) Viscometers: Rely on a probe that vibrates within the product; changes in vibration response reveal viscosity. These sensors excel in continuous inline monitoring of mayonnaise viscosity in automated lines, handling changing shear rates common in the process.
- Microfluidic Viscometers: Channel tiny amounts of emulsion through chip-based systems, offering precise viscosity control and texture monitoring. These are emerging in research for real-time mayonnaise viscosity testing and process development.
A common principle in emulsion viscometry is monitoring how dispersed oil droplets interact, since oil droplet size directly impacts mayonnaise texture, emulsion stability, and the effectiveness of stabilizing agents.
Types Available and Suitability for Production
Mayonnaise manufacturers deploy several emulsion viscometer types to maintain best practices for mayonnaise consistency across the full spectrum of production:
- Inline Rotational Viscometers: Installed on mixing or filling lines, these deliver direct feedback for viscosity control. For example, they can alert when the product is too thick or too thin, supporting corrective actions such as recipe adjustment or process change, thereby improving mayonnaise texture.
- Inline Vibrational Viscometers: Widely adopted for continuous process monitoring of oil-in-water emulsions. Their design makes them less sensitive to product build-up and better suited for extended operation. Vibrational sensors enable robust mayonnaise viscosity measurement, making them essential for high-throughput facilities.
- Bench-top or Laboratory Rheometers: Used for formulation development or periodic batch testing. They provide comprehensive emulsion viscosity testing, mapping out flow curves for non-Newtonian materials, and supporting research into factors affecting mayonnaise viscosity.
- Microfluidic Systems: Emerging devices in process R&D. While not yet universally standardized for industry, they offer improved resolution and minimal sample requirements and have shown promise for future inline mayonnaise viscosity control and quick process diagnostics.
When optimizing production, companies often combine technologies: rotational sensors for shear simulation and vibrational sensors for resilient, low-maintenance continuous monitoring.
Selecting Sensors for Cleaning Cycles, Pressure, and Temperature Swings
Food processing environments demand sensor materials and construction that withstand caustic cleaning agents (CIP/SIP), temperature spikes, and pressure fluctuations:
- Materials: Choose sensors made from high-grade stainless steel, ceramics, or proprietary metamaterials. These resist corrosion and survive aggressive cleaning, safeguarding measurement fidelity and food safety.
- Design Features:Temperature Compensation: Advanced viscometers feature built-in compensation algorithms, continuously standardizing viscosity readings to a reference temperature. This aids in stabilizing mayonnaise emulsion and keeps control tight despite ambient or process temperature changes.
- Minimal crevices or dead volumes, reducing risk of fouling and ensuring easy cleaning.
- Smooth, polished surfaces for full compliance with hygienic design standards.
- Pressure-resistant housing to tolerate rapid changes in processing lines, especially during mayonnaise production where mixing and filling can cause significant pressure swings.
- Pressure Tolerance: Select sensors rated for the highest expected process pressures, ensuring they deliver reliable results without maintenance interruptions during batch transitions or cleaning cycles.
By combining robust materials, intelligent design, and powerful temperature/pressure compensation, modern emulsion viscometers supply reliable measurements and support corrective solutions for mayonnaise too thick or mayonnaise too thin scenarios. This ensures consistent product quality, efficient production, and regulatory compliance.
Integrating Inline Viscosity Measurement in the Mayonnaise Production Process
Placement in the Manufacturing Line and Integration with Automation
For reliable mayonnaise viscosity measurement and control, the inline viscometer should be placed directly downstream of the emulsifier, where the oil-in-water emulsion stabilizes and reaches its final rheological behavior. This section is marked by fully developed and laminar flow, helping to avoid influence from turbulence, incomplete mixing, or stratified material. Placement here ensures the measured viscosity reflects the finished product and supports accurate process control for improving mayonnaise texture and stabilizing the mayonnaise emulsion.
Devices such as the Lonnmeter inline viscometers are well-suited for integration at this stage. Their robust, stainless-steel construction and compatibility with cleaning-in-place (CIP) procedures meet food safety requirements. These sensors offer analog or digital outputs, enabling direct interface with SCADA, DCS, or bespoke process automation. This integration empowers real-time mayonnaise viscosity control: data from the emulsion viscometer feeds automated systems that regulate factors affecting mayonnaise viscosity, such as oil addition rates and emulsifier levels, ensuring consistent texture and minimizing batch-to-batch variations.
Setup and Calibration Best Practices for Continuous Operation
Accurate and reliable operation of inline emulsion viscosity testing requires careful initial setup and regular calibration. Key practices include:
Optimal Installation:
- Mount the probe in a section of pipe with stable, homogenous flow—typically post-emulsifier, pre-packaging or filling.
- Avoid zones with high turbulence, stagnant pockets, or air entrainment.
Calibration Protocols:
- Use NIST-traceable reference fluids, preferably mineral oils, at defined intervals to check sensor accuracy.
- Avoid silicone oils and fluids incompatible with mayonnaise formulation.
- Adhere to standards such as ASTM, ISO, and DIN for calibration cycles, traceability, and operational settings.
- Maintain precise temperature control around the measurement zone, as temperature changes significantly affect mayonnaise viscosity.
Operational Considerations:
- Select sensor type and operational range according to mayonnaise’s typical viscosity and shear rates.
- Ensure the sensor is positioned for easy maintenance and routine cleaning.
Industry experience and peer-reviewed studies underscore the importance of routine calibration and maintenance, with regular verification cycles preventing drift and safeguarding continuous, high-fidelity measurement.
Capturing, Analyzing, and Acting on Viscosity Data
Continuous data capture from an emulsion viscometer transforms the mayonnaise production process:
Real-Time Monitoring:
- The sensor streams viscosity measurements into the automation system, updating process parameters every few seconds.
- Real-time monitoring enables immediate adjustment to oil dosing and mixing rates, stabilizing the mayonnaise emulsion and eliminating manual guesswork.
Data Analysis:
- Automated platforms analyze trends, flagging deviations from setpoints (best practices for mayonnaise consistency).
- Analysts can track time-series graphs, extract statistical features (mean, standard deviation), and correlate viscosity changes to process events (ingredient addition, temperature shocks).
Process Actions:
- If viscosity shifts outside the desired range—making mayonnaise too thick or too thin—the system automatically triggers corrective actions:
- For “mayonnaise too thick solutions”: reduce oil addition, increase water phase, or adjust mixing speed.
- For “mayonnaise too thin solutions”: increase emulsifier dosage, slow down oil addition, or reduce water content.
Industrial deployments show significant reductions in raw material waste, improved process repeatability, and ROI within a year due to lower labor, recall, and off-spec costs.
Resolving Issues such as Sensor Fouling or Drift
High-fat emulsions like mayonnaise are prone to sensor fouling, where material accumulates on sensing surfaces, leading to measurement drift. Best practices for minimizing these risks include:
Sensor Installation and Design:
- Install the sensor in pipe elbows, orienting the probe tip against flow to boost self-cleaning and minimize accumulation.
Fouling Mitigation Devices:
- Introduce static mixers (e.g., twisted tape or Kenics) upstream of the sensor. These devices enhance turbulence and mixing, preventing build-up and preserving accurate mayonnaise viscosity measurement.
- Prefer mixers with constant diameters for maximal fouling prevention.
Maintenance and Cleaning:
- Regularly inspect and clean the sensor, following a predefined schedule suitable for mayonnaise production.
- Select sensors compatible with CIP to facilitate hygienic operation and reduce manual cleaning intervals.
Managing Drift:
- Pair routine cleaning with periodic calibration against reference standards.
- Monitor sensor output for gradual shifts; automate alerts if readings deviate beyond allowable limits.
Recent studies in chocolate and mayonnaise production support these approaches, noting substantial reductions in fouling and enhanced measurement stability when employing optimal probe orientation and static mixing. Continuous attention to these practices ensures reliable emulsion viscosity testing and optimal product quality throughout the mayonnaise production process.
Optimizing Mayonnaise Texture: Application of Viscosity Data
Measurement Feedback in Process Control
Inline mayonnaise viscosity measurement provides immediate feedback, enabling operators to fine-tune both batch and continuous mayonnaise production processes. This feedback is sourced from viscosity measurement instruments such as the Lonnmeter emulsion viscometer installed directly in the pipeline post-emulsification, where consistent oil-in-water emulsion formation yields reliable data. The real-time viscosity data supports automatic dosing of oil, water, and emulsifier, helping achieve consistent texture and phase stability across all production runs. Unlike traditional offline viscosity testing, inline monitoring minimizes lag and allows rapid intervention, which is crucial for avoiding product waste and maintaining the best practices for mayonnaise consistency.
Real-Time Formulation Adjustment
Mayonnaise viscosity trends, visualized through inline emulsion viscosity testing, are central to dynamic recipe correction. For example, if the viscosity — as measured by an emulsion viscometer — drifts below target, real-time adjustment algorithms can increase emulsifier or hydrocolloid dosing. Emulsifiers like konjac glucomannan (KGM), whey protein (WP), or modified starch are titrated in response to viscosity feedback. In low-fat mayonnaise, hydrocolloids such as guar gum or Dioscorea root extracts are incrementally added to boost viscosity, offsetting the mouthfeel loss from fat reduction and stabilizing the oil-in-water emulsion. Continuous lines can adjust ingredient feeds via automated valves, while batch operations respond to viscosity setpoint alarms, ensuring corrections align with real-time measurements.
Correcting Over-Thick or Over-Thin Mayonnaise
Over-Thick Mayonnaise Solutions
When mayonnaise is too thick, viscosity readings rapidly signal the deviation. Solutions include:
- Decreasing emulsifier or hydrocolloid loading: Lower co-emulsifier concentrations reduce apparent viscosity and prevent gel-like texture.
- Increasing water phase: Carefully titrating additional water dilutes the emulsion, bringing viscosity within the desired range.
- Reducing shear during mixing: Lower rotor-stator speeds yield larger oil droplets and a thinner consistency.
These methods preserve emulsion stability and mouthfeel while restoring spreadability. Operators can use online feedback from texture analyzers to confirm correction effectiveness.
Over-Thin Mayonnaise Solutions
Mayonnaise too thin is detected by low inline viscosity. Solutions involve:
- Increasing emulsifier/hydrocolloid concentrations: Adding KGM, WP, guar gum, or modified starch improves viscosity and stabilizes the emulsion.
- Fat content adjustment: Raising oil levels within formulation limits boosts viscosity and enhances mouthfeel.
- High-shear mixing: Raising shear rate creates smaller droplets with increased viscoelasticity and creaminess.
Automated mixing and ingredient dosing systems respond to viscosity control data, minimizing corrective downtime and reducing non-conformities.
Balancing Stability, Mouthfeel, and Efficiency
Achieving optimal mayonnaise texture relies on harmonizing stability, mouthfeel, and production efficiency, all guided by real-time viscosity data.
- Stability: Dual or multi-emulsifier systems—such as KGM-WP blends or Pickering emulsion methods using rice starch—provide exceptional phase stability and shelf life. Increased hydrocolloid content reduces the creaming index, maintaining emulsion integrity.
- Mouthfeel: Instrumental viscosity correlates strongly with consumer perception—higher readings yield creamier, scoopable, and spreadable mayonnaise. Shear-thinning behavior ensures appealing texture both in spooning and on the palate.
- Efficiency: Inline mayonnaise viscosity measurement reduces operator intervention, facilitates rapid corrective action, and supports continuous improvement. Emulsion stability and texture are maintained, even with automated corrections and fat reduction strategies.
Process intelligence platforms integrate viscosity control data, driving predictive maintenance and further optimizing the mayonnaise production process. The result is reliably stabilized mayonnaise emulsion, tailored for consumer preference and regulatory consistency, while minimizing downtime and ingredient waste.
Summary of Research Insights and Industry Practice
Hydrocolloid-Enhanced Emulsions: Improved Stability and Consistency
Hydrocolloids such as modified rice starch, Dioscorea rotundata derivatives, and konjac glucomannan are widely used to enhance the stability, viscosity, and texture of mayonnaise. In oil-in-water emulsion systems, these hydrocolloids serve as both thickening agents and emulsifiers, resulting in smaller droplet sizes and improved phase separation resistance. For example, pregelatinized rice starch at 200 mg/mL concentration produces an emulsion index of 100% and a minimal average droplet size of ~17 μm. This leads to consistent texture and shelf stability, which are vital for maintaining mayonnaise quality throughout storage and transport. However, excessive hydrocolloid content (e.g., 400 mg/mL rice starch) can cause instability, highlighting the importance of optimal dosing for effective viscosity control and emulsion stabilization.
Konjac glucomannan, when co-stabilized with whey protein, yields synergistic effects: finer droplet distribution (down to 12.9 μm), gel-like texture, and more pronounced viscoelasticity. Such attributes directly underpin sensory qualities like mouthfeel and spreadability, both critical in consumer satisfaction and best practices for mayonnaise consistency.
Plant-Based Alternatives to Traditional Emulsifiers and Their Effect on Viscosity
The shift toward clean-label and plant-based mayonnaise production processes has accelerated research on alternative emulsifiers such as modified starches. Pickering emulsions, stabilized by pregelatinized rice starch particles, achieve high emulsion indices and deliver stable, creamy textures without egg yolk or synthetic surfactants. Rheological analyses confirm increased viscosity and viscoelasticity as concentration and gelatinization degree rise. These plant-based systems support renewable sourcing and allergen-free claims, while sensory testing links modified starch formulations to enhanced creaminess and satisfactory mouthfeel—key factors impacting consumer choice and texture improvement. Notably, the clean-label appeal of these ingredients is matched by their functional ability to maintain stable viscosity over time, as indicated by consistent measurement in emulsion viscosity testing.
Understanding Shear Behavior to Tailor the Sensory Profile
Mayonnaise exhibits shear-thinning behavior, meaning its viscosity decreases with increasing shear rate—a property central to processing, dispensing, and mouthfeel. Plant-based hydrocolloid emulsions show pronounced pseudo-plasticity (flow index n ≈ 0.15–0.49), leading to stable, creamy sensory profiles even at lower fat levels. Rheological parameters such as storage modulus (G’) exceeding loss modulus (G’’) indicate a gel-like, elastic structure vital for body and firmness. Tribometry and oral shear stress analyses corroborate that improved flow behavior directly enhances perceived creaminess and texture, supporting sensory claims. This knowledge empowers producers to adjust formulations for targeted viscosity attributes, providing solutions for mayonnaise too thick or too thin by balancing hydrocolloid content and process conditions.
Importance of Robust Instrumentation for Routine Quality Assurance
Routine emulsion viscosity measurement is fundamental for quality assurance in mayonnaise manufacturing. Robust inline viscometers deliver continuous, real-time data for process monitoring and control. These instruments feature all-stainless steel construction for hygienic operation and durability, accommodate both Newtonian and non-Newtonian fluids, and can be retrofitted with minimal disruption. Their high repeatability (±0.2%) and fine resolution eliminate reliance on sampling lag or operator variability, allowing for immediate corrective actions and optimal texture management.
Additionally, advanced techniques such as machine learning-based computer vision offer non-contact viscosity assessment and rapid adjustment capabilities, particularly useful in innovative or variable product environments. Inline rheological systems facilitate proactive intervention, reducing waste, ensuring product consistency, and safeguarding food safety—all crucial factors for stabilizing mayonnaise emulsion and ensuring best practices in mayonnaise viscosity control and measurement.
Frequently Asked Questions
What defines the mayonnaise production process as an oil-in-water emulsion?
Mayonnaise is produced by finely dispersing oil droplets into a continuous water phase, which contains egg yolk, acid (such as vinegar or lemon juice), and other aqueous ingredients. This structure is stabilized by emulsifiers—most importantly, proteins from egg yolk and sometimes polysaccharides—ensuring the oil droplets remain uniformly suspended. This oil-in-water emulsion is essential for mayonnaise’s creamy texture and spreadability. Innovations also use whey protein isolate or hydrocolloids to further improve emulsion stability and mimic traditional mayonnaise mouthfeel while supporting formulation flexibility.
Why is the viscosity of mayonnaise so important in production?
Viscosity shapes mayonnaise’s sensory properties, including mouthfeel, spreadability, and appearance. It also serves as a predictor of emulsion stability and shelf life. Proper viscosity ensures every batch meets the expected standard—too thick, and the product becomes hard to spread; too thin, and it may separate or fail to hold its shape. Uniform viscosity across batches is a non-negotiable benchmark for consumer satisfaction and regulatory compliance, especially as viscosity changes can indicate underlying emulsion destabilization or formulation issues.
How is mayonnaise viscosity measured during processing?
Inline emulsion viscometers are standard in modern mayonnaise production. These sensors are installed directly into the production line. They provide continuous, real-time data on mayonnaise viscosity, responding instantly to any process variation. Technologies include rotational viscometers (often with a T-bar or helical spindle for good sample engagement in thick, non-Newtonian systems) and, increasingly, computer-vision-based approaches for automated, high-throughput viscosity estimation. These methods are essential for fast adjustments and minimize the risk of producing off-spec product.
What should I do if my mayonnaise is too thick or too thin?
For mayonnaise that’s too thick:
- Lower the oil-to-water ratio.
- Reduce the concentration of thickening agents (such as hydrocolloids like xanthan gum).
- Consider tempering the emulsification process to avoid overdensification.
For mayonnaise that’s too thin:
- Increase emulsifier levels (egg yolk, whey protein, or stabilizing hydrocolloids such as locust bean gum).
- Raise oil content if formulation allows.
- Enhance the homogenization or apply ultrasonication to improve droplet breakdown and stability.
Both formulation and processing parameters—including temperature, mixer speed, and ingredient addition sequence—can have major impacts on final viscosity, so process optimization tools like rheological assessment or response surface methodology are often applied to dial in ideal settings.
What are the benefits of real-time, inline viscosity measurement for mayonnaise production?
Real-time, inline mayonnaise viscosity measurement delivers clear process advantages:
- Immediate feedback: Any deviations in viscosity are detected and corrected instantly—speeding up troubleshooting and reducing reliance on after-the-fact lab testing.
- Reduced raw material waste: Process control adjustments happen as product is made, minimizing discarded batches and overuse of ingredients.
- Improved consistency: Product properties remain tightly aligned with target specifications, reducing consumer complaints.
- Efficient operations: Automation lowers manual workload, supports rapid formulation adjustments, and contributes to fast return on investment by reducing quality hold-ups and compliance risks.
