In Tank Density Meter
Working Principle
The in-process tank level density meter uses a piezoelectric tuning fork as its core sensing component. This tuning fork is driven by a piezoelectric element to vibrate stably at its inherent natural frequency during operation. When the liquid in the reaction vessel or tank (such as in mixing, distillation, or crystallization processes) comes into contact with the tuning fork, the liquid’s density directly affects the total mass of the tuning fork assembly. This change in total mass triggers a corresponding shift in the tuning fork’s vibration frequency. The meter then converts this frequency change into a measurable signal, thereby calculating the liquid’s density and concentration accurately.
Product Features
• High-Precision Tuning Fork Density Meter: Advanced vibrating fork technology for accurate online density measurement with 0.003 g/ml accuracy.
• Wide Measurement Range: Covers 0-2 g/ml density, supporting high-viscosity fluids up to 2000 cP, ensuring reliable performance in pipelines, tanks, and storage vessels.
• Integrated Temperature Compensation: Built-in sensor for real-time adjustments across -30°C to 120°C operating range.
• 4-20mA Analog Output with Display: Seamless integration with PLC systems, featuring a 4-digit LED display for density, concentration, and temperature readout.
• Explosion-Proof and Durable Design: ExdIIBT6 certified for hazardous environments, constructed from 316 stainless steel (optional Hastelloy).
• Flexible Installation Options: Direct insertion for horizontal/vertical pipelines or flange mounting in tanks.
• Continuous Real-Time Monitoring: Provides uninterrupted online density and concentration data, eliminating lab analysis needs.
• Certifications for Quality Assurance: Customizable CE, FCC and RoHs certificates, ensuring safety and reliability in pharmaceutical, beverage, and oil industries.
• User-Friendly Calibration: Simple water calibration and menu-driven interface for fine-tuning.
Interested? Contact Sales Team
Product Advantages
● Superior accuracy ±0.003 g/ml and repeatability 0.001;
● Broad density measurement range 0-2 g/ml and high viscosity range 0-2000 cP;
● Robust design like explosion-proof certification and corrosion-resistant materials;
● User-friendly integration 4 - 20 mA output and easy on-site calibration;
● Intuitive operation interface and low maintenance demands;
More Applications? Consult Engineers Now
Parameter Selection Table
| In Tank Density Meter | Specification Code | Tuning Fork Density Meter | |||||
| Density Measurement Range | 1 | 0～1 . 5 g/cm³ | |||||
| 2 | 0～2 g/cm³ | ||||||
| X | Others | ||||||
| Process Connection | D1 | 2" 150LB Flange | |||||
| D2 | 2" 300LB Flange | ||||||
| D3 | DN50 PN25 Flange | ||||||
| D4 | DN50 PN40 Flange | ||||||
| K1 | 2" Clamp | ||||||
| K2 | 3" Clamp | ||||||
| M1 | G3/4 Thread | ||||||
| M2 | G1 Thread | ||||||
| XX | Others | ||||||
| Material of Wetted Parts | J1 | 316 | |||||
| J2 | Titanium | ||||||
| J3 | Zirconium | ||||||
| J4 | Hastelloy-C alloy | ||||||
| JX | Others | ||||||
| Surface Treatment | A | Standard Polishing | |||||
| B | Electropolishing | ||||||
| C | PFA Coating | ||||||
| Probe Length | 0 | Standard Length | |||||
| 1 | 100 mm | ||||||
| 2 | 200 mm | ||||||
| 3 | 300 mm | ||||||
| 4 | 400 mm | ||||||
| 5 | 500 mm | ||||||
| X | Others | ||||||
| Accessories | F0 | None | |||||
| F1 | Mounting Bracket | ||||||
| F2 | Bypass Pipeline | ||||||
| F3 | Flow Cell | ||||||
| F4 | Flushing Port | ||||||
| F5 | Flange Support | ||||||
| F6 | Protective Cover | ||||||
| FX | Others | ||||||

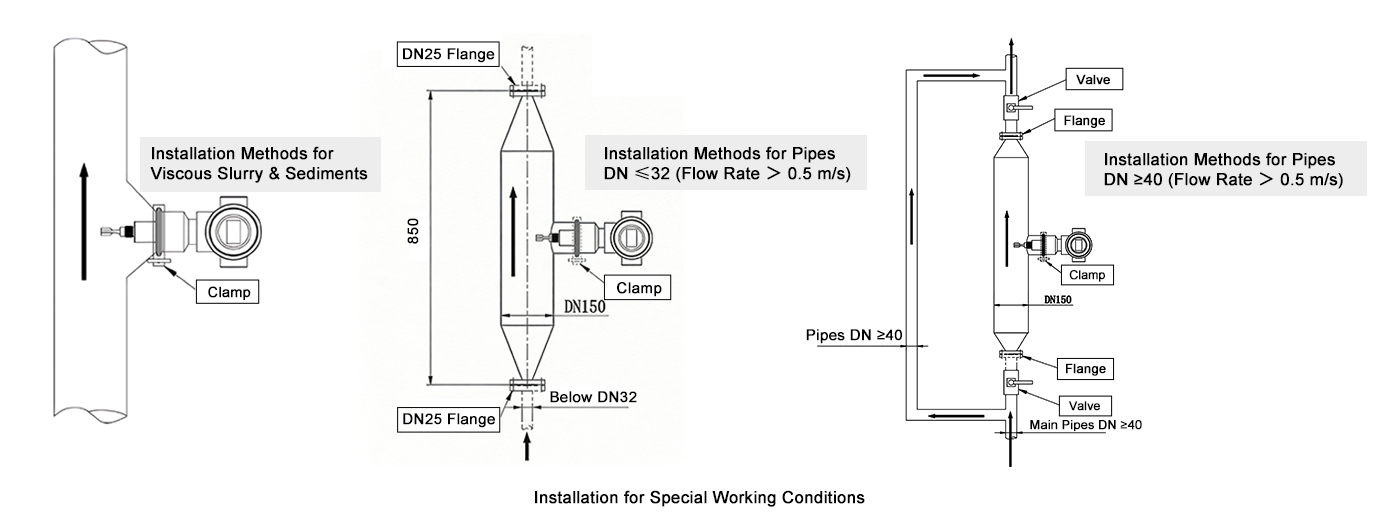

Installation

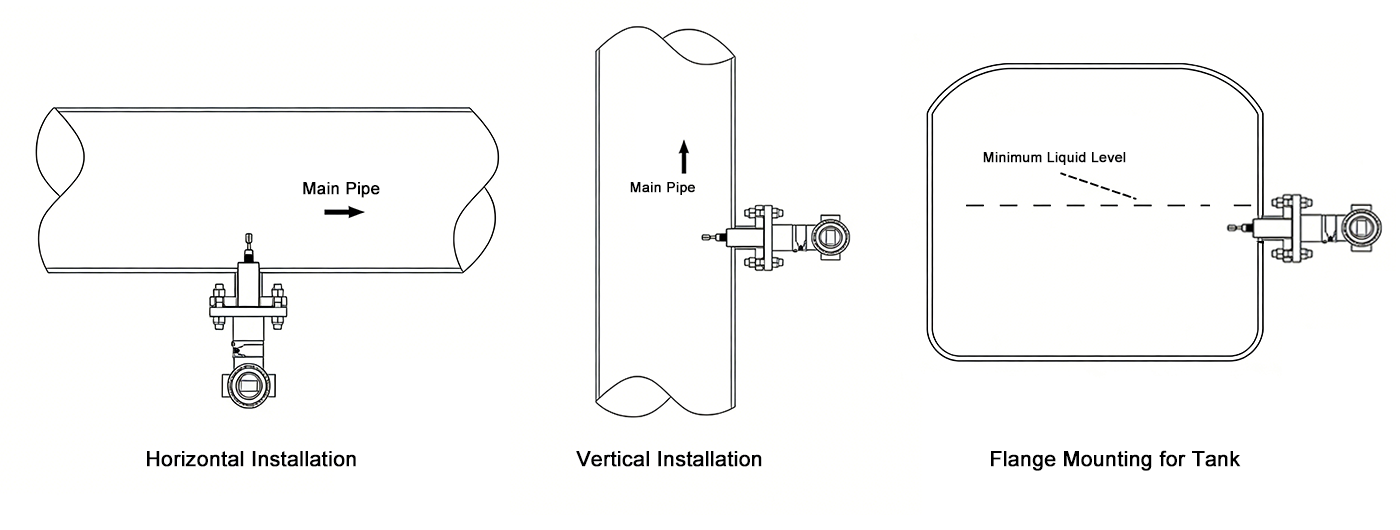

Inline Density Meter Installation Diagram
Customization Options
I. Core Performance Customization
● Measurement Accuracy and Range
● Installation Method
● Material of Wetted Parts
II. Environment and Safety Customization
● Explosion - Proof Certificate
● Temperature and Pressure Certificates
Start ODM Inline Glycol Concentration Meter Now
