Online high-shear viscometers deliver precise, real-time viscosity measurements directly within production lines. For non-Newtonian fluids like shampoo and conditioner—which exhibit shear-thinning behavior where viscosity drops under flow—their critical advantages lie in capturing dynamic flow properties that traditional lab tools miss.
What is the Viscosity of Shampoo?
Viscosity, defined scientifically as a fluid’s resistance to internal flow, is unequivocally a Critical Quality Attribute (CQA) in the manufacturing of personal care products, particularly shampoo and hair conditioner. This physical property dictates a product's stability, texture, sensory perception, and overall performance during dispensing and use. While viscosity provides a measure of thickness. For sophisticated chemical formulations such as shampoo and conditioner.

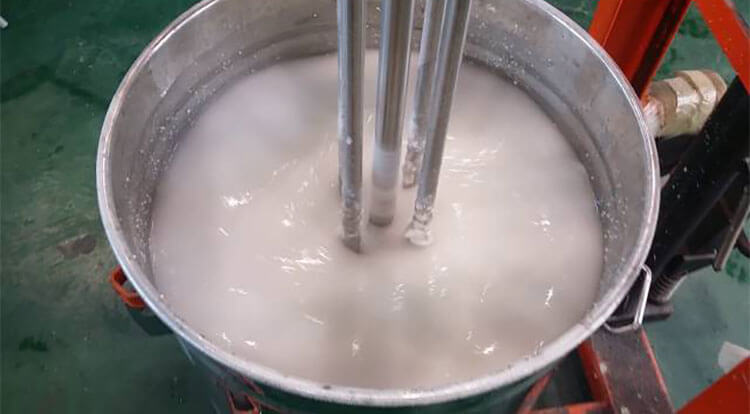

shampoo manufacturing homogenization
*
Shear-Thinning, Pseudoplasticity, and Thixotropy
Unlike Newtonian fluids, such as water, where viscosity remains constant regardless of the applied shear force, the viscosity of complex aqueous surfactant systems like shampoo and conditioner is highly variable and depends entirely on the shear rate applied. This defining characteristic classifies them as Non-Newtonian fluids. The most relevant behavior observed is Shear-Thinning, also known as pseudoplasticity, where the apparent viscosity of shampoo decreases dramatically as the shear rate increases. This property is intentionally engineered into the product design: the formulation must maintain high viscosity (low flow resistance) to remain stable inside the bottle and adhere to the hand (low shear environment), but it must instantly drop in viscosity (high flow) when squeezed, pumped, or spread through the hair (high shear environment).
Furthermore, many thickened personal care emulsions and gels, including certain conditioners and lotions, exhibit time-dependent rheological behavior known as Thixotropy. Thixotropic materials thin under shear but require a specific duration to recover their original, higher-viscosity structure after the stress is removed.
Overcoming Measurement Limitations
Deficiencies of Traditional Laboratory (Off-line) Viscometry Methods
Relying on traditional laboratory methods for complex non-Newtonian fluids introduces systemic inefficiencies and risks. Manual sampling and benchtop testing inherently introduce substantial time delays, transforming quality assurance into a reactive, post-process correction step. During this delay, an entire batch can proceed downstream, only to be rejected hours later. Furthermore, most standard lab viscometers measure viscosity at low or uncontrolled shear rates, producing data that is irrelevant to the high-shear environments found in reactors, pumps, and transfer lines. This is particularly debilitating for highly shear-thinning products. Compounding this, the thixotropic nature of many formulations means that viscosity readings are highly sensitive to sample handling and the time elapsed since the fluid experienced mixing stress, leading to poor batch-to-batch repeatability and inconsistency. Finally, the manual sampling process carries inherent risks of contamination, procedural inconsistencies, and human error, all of which skew results and increase production costs.
Inline High Shear Viscometer
To circumvent these fundamental limitations, the industry is increasingly adopting inline ultra shear viscometers. These instruments offer continuous, real-time viscosity measurement directly within the production line. This shift to continuous data acquisition enables process conditions to be adjusted dynamically based on live viscosity feedback, which is essential for ensuring product consistency, optimizing production throughput, and substantially reducing material waste. The integration of these sensors into the shampoo manufacturing process fundamentally transforms quality control from a testing function into an active, process control function.
Lonnmeter Ultra Shear Viscometer
The Lonnmeter inline ultra shear viscometer operates based on a vibration principle. The core sensing element is a robust, rod-shaped structure that vibrates torsionally along its central axis at a fixed, resonant frequency. As the element shears the fluid across its surface, it loses kinetic energy due to the fluid’s internal resistance, known as viscous drag forces. The degree of energy loss, or mechanical damping, is directly proportional to the fluid’s viscosity: higher viscosity results in greater drag and higher energy dissipation. The sensor’s electronic components detect this energy loss, and the transmitter processes the signal into a clear, accurate, and real-time viscosity value. This utilization of a torsional resonator is highly advantageous, as it makes the sensor inherently stable, better isolated from external vibration, and primarily sensitive only to the dissipative viscous forces of the fluid.
Technical Specifications and Operational Range
The Lonnmeter device demonstrates robust engineering necessary for demanding industrial environments, ensuring reliability, precision, and chemical compatibility.
Table: Lonnmeter Ultra Shear Viscometer Technical Specifications
|
Parameter |
Specification/Range |
Relevance to Personal Care Production |
|
Viscosity Range |
1 - 1,000,000 cP |
Sufficient to cover raw materials (water-thin) up to highly concentrated, high-viscosity finished products. |
|
Accuracy |
±2% ~5% |
Ensures the precise quality control necessary for high-value chemical formulations and tight CQA adherence. |
|
Repeatability |
±1% ~ ±2\% |
Critical for achieving strict batch-to-batch consistency and meeting stringent regulatory and consumer standards. |
|
Operational Reliability |
IP65, Explosion-proof (Ex dIIBT6) |
Suitable for wash-down, harsh environments, and hazardous areas commonly found in chemical processing. |
|
Output/Interface |
Viscosity 4 - 20 mADC / RS485 |
Standard industry outputs for seamless integration with DCS/SCADA systems and PLCs. |
|
Material Contact |
316 L, Teflon, Hastelloy |
Ensures corrosion resistance against aqueous surfactant solutions, thickeners, and pH adjusters. |
Learn About More Density Meters
More Online Process Meters
Strategic Implementation in Production Lines
Comprehensive Overview of the Shampoo/Conditioner Production Process Flow
The shampoo/conditioner production process is a multi-step sequence designed to ensure the uniform dispersal of ingredients and the stable formation of the final emulsion. The core steps involve: Raw Material Preparation (purification, heating, pre-dissolving solids); Mixing, Reaction, and Emulsification (sequential addition of surfactants, conditioning agents, and viscosity modifiers); Homogenization (high-shear blending to stabilize the emulsion and incorporate final additives like fragrances and colorants); Quality Inspection; and finally, Filling and Packaging. Viscosity control is not a singular quality check but a dynamic, continuous requirement across multiple stages.
Identifying Key Measuring Points in Shampoo/Conditioner Lines for Viscosity Control
Strategic placement of the inline shear viscometer is essential for creating effective closed-loop control systems. The goal is to monitor CQA changes instantaneously during phases where adjustment is still feasible, preventing quality deviations from progressing. Three critical monitoring points are identified:
|
Process Stage |
Measurement Rationale |
Required Control Action / Loop |
|
P-1: Post-Thickener/Salt Addition (Primary Control Point) |
Measures the instantaneous adjustment of the micellar network structure, confirming the immediate effect of viscosity modifiers. |
Implementation of closed-loop PID control for real-time, precise dosing of electrolyte (salt) solution or pH adjustment chemicals. This is crucial for avoiding the sharp viscosity decline associated with overshooting the parabolic "salt curve" maximum. |
|
P-2: Pre-Homogenization/Holding Tank Outlet |
Monitors long-term stability, ensuring the correct thixotropic recovery and consistency of the bulk product prior to final blending and high-shear treatment. |
Adjustment of batch holding time or residual mixing intensity. Ensures a stable base emulsion structure before proceeding, preventing high equipment load from an overly viscous product. |
|
P-3: Final Product Transfer (Pre-Filling Line) |
Provides the final validation of product consistency, ensuring the rheological properties meet the requirements for automated filling machinery (flow characteristics) and consumer use (dispensing). |
High-precision quality gate control: automatic diversion of off-spec product to a rework tank or triggering immediate adjustments to the volumetric filling machine flow rate. |
The consistent monitoring of viscosity throughout the process, particularly at P-2 and P-3, provides non-destructive confirmation of the finished emulsion structure. During homogenization, many emulsions undergo a substantial viscosity increase as the droplet size is reduced, and the magnitude of this increase serves as a reliable indicator of overall emulsion quality and stability. Real-time monitoring helps determine the desired endpoint of mixing/blending and allows for adaptive adjustments to parameters like stirring intensity or time. This capability shifts quality control from identifying product failures to actively preventing issues like phase separation or creaming, ultimately enhancing shelf life.
Closed-Loop Control and Viscosity Modulation
How to Control Shampoo Viscosity and Conditioner Rheology
Control over shampoo viscosity and conditioner rheology is achieved through the precise management of multiple interactive factors, including the type and concentration of surfactants, the concentration of added polymers or thickeners, temperature, pH levels (which influence charge interactions), and the concentration of electrolytes, such as salt. Of these methods, the addition of salts is frequently the most cost-effective and common mechanism used to modulate the viscosity in sulfate-based surfactant systems.
The Role of Electrolytes: Understanding the Salt Curve and Micellar Network Dynamics
The control mechanism involving electrolytes, primarily sodium chloride, is based on the impact of salt ions on the aqueous surfactant system's micellar network. This relationship is notably non-linear, following a parabolic function known as the "salt curve". Initially, small additions of salt increase the viscosity of shampoo by shielding the electrostatic repulsion between surfactant head groups. This shielding promotes micellar growth and entanglement, leading to thickening. Viscosity peaks at an optimal electrolyte concentration; however, exceeding this critical concentration results in excessive micellar branching and a rapid, sharp decline in viscosity (thinning out). Given that the industrially relevant range for acceptable shampoo viscosity is often a narrow segment of this curve (e.g., 3 to 15 Pa s), maintaining consistency in this small operating window is highly challenging without real-time, high-accuracy measurement.
Real-Time Viscosity Adjustment Mechanisms: Automated Dosing and pH Modulation
The deployment of an inline ultra shear viscometer facilitates true closed-loop process control. The sensor instantaneously measures the fluid’s apparent viscosity (the Process Variable) and feeds this data back to the Distributed Control System (DCS) or Supervisory Control and Data Acquisition (SCADA) system. If the Process Variable deviates from the established Set Point (Target Viscosity), the controller executes a proportional-integral-derivative (PID) loop, activating an automated dosing pump or metering valve to inject the calculated corrective agent, such as a saline solution or a pH adjuster. This immediate, data-driven response is the core mechanism of Process Integration & Real-time Control. This proactive control prevents the common manufacturing error of overshooting critical rheological parameters—specifically the peak of the salt curve—thereby guaranteeing batch integrity and minimizing the high costs associated with batch rework. Traditional measurement lag forces conservative dosing, which often results in off-spec material that requires costly reprocessing or disposal.
Complexities and Challenges in Shampoo/Conditioner Viscosity Determination
The Impact of Time-Dependency (Thixotropy) on Measurement
A significant challenge in the personal care industry is managing the time-dependent (thixotropic) nature of many formulations. Thixotropic fluids, such as certain creams and gels, yield inconsistent viscosity data if the measurement is not standardized, as the viscosity value changes based on the time elapsed since the material was last sheared. By deploying an inline shear thinning viscometer, this issue is mitigated. The sensor measures the apparent viscosity under a stable, constant shear rate determined by the process flow. This approach provides a continuous, industrially relevant data point that is far more reliable and repeatable than intermittent lab samples taken in a state of rheological recovery after manual handling.
Raw Material Variability and the Need for Predictive Monitoring
Variability in the quality of incoming raw materials, such as fluctuations in surfactant consistency, or minor variations in process parameters (e.g., temperature, flow rate, pressure) can introduce unpredictable changes to the final product viscosity. Continuous, high-frequency monitoring via the inline shear viscometer enables operations teams to rapidly identify and fingerprint the exact impact of specific raw material batches on the final CQA. This high-resolution data stream is foundational for integrating advanced predictive quality models, potentially in conjunction with other technologies like NIR spectroscopy, to maintain consistency despite inevitable input variability.
Operational Efficiency and Total Cost of Ownership (TCO)
Reduction in Batch Failure Rates and Material Waste
The operational justification for adopting inline ultra shear viscometers is based on dramatic, quantifiable improvements in efficiency and quality control. Implementing real-time viscosity control transforms batch quality management from reactive to predictive. Comparable industrial applications, where viscosity dictates product quality (e.g., polymerization), have demonstrated that the use of inline viscometers can reduce the batch failure rate to zero. This success is highly transferable to complex surfactant chemistry. The elimination of batch rejections and the prevention of off-spec product translate directly into substantial cost savings, mitigating the colossal loss of expensive raw materials and intermediates.
Batch Time Reduction and Endpoint Detection
Beyond eliminating waste, the ability of the inline shear viscometer to provide instant confirmation of reaction or mixing endpoints radically improves throughput. Instead of relying on predefined mixing times or waiting for the lag associated with off-line lab validation, the system instantly confirms when the target viscosity has been reached. In manufacturing environments utilizing similar technology, this precise endpoint detection has been shown to reduce batch processing time by up to 2 hours. This time saving allows the facility to run more batches per day, maximizing asset utilization, increasing overall production capacity without further capital expenditure, and significantly lowering the high energy consumption associated with prolonged mixing and heating cycles.
Low Maintenance and Enhanced Operational Reliability
The robust construction of the sensor, utilizing high-grade materials such as 316 L stainless steel, Hastelloy, and Teflon, combined with the lack of internal moving parts, seals, or bearings, ensures maximum operational uptime and minimal mechanical degradation from chemical exposure. Furthermore, the system is engineered to be factory-calibrated and maintain its reliability without requiring frequent, complex field calibration. This combination of factors ensures long-term measurement reliability and significantly reduces the labor costs associated with maintenance, contributing substantially to a low Total Cost of Ownership (TCO).
Ensuring Quality Compliance & Traceability
Consistent, high-quality manufacturing depends on rigorous protocol adherence and comprehensive documentation. Because viscosity directly governs product stability, shelf life, and performance characteristics, meticulous protocols for viscosity measurement are essential for regulatory compliance and meeting consumer expectations. The inline ultra shear viscometer system provides high-frequency data logging and capture throughout the entire production cycle, offering a continuous, detailed batch history that surpasses the limitations of intermittent discrete sampling. This robust data historization ensures reliable Quality Compliance & Traceability for internal audits, regulatory submissions, and post-market investigation, reinforcing consumer trust and brand reputation.
Seamless Integration with DCS/SCADA Systems
Data Communication Standards and Interface Specifications
The value of real-time viscosity data is fully realized only when the sensor is integrated into the plant's automation infrastructure. The inline ultra shear viscometer is specifically designed for seamless integration with DCS/SCADA systems. It provides standard industrial outputs, including the robust 4-20 mADC analog signal, which is universally compatible for direct input into proportional-integral-derivative (PID) controllers and simpler control loops. Additionally, the RS485 serial data link provides a comprehensive digital conduit, allowing for the transmission of high-resolution viscosity, temperature, and status data for advanced computation and historization. This dual interface capability ensures versatility across simple and complex automation schemes.
Benefits of Centralized Data Management for Process Historization and Analytics
Integrating the inline shear viscometer into the Distributed Control System (DCS) or SCADA system allows for the centralized collection, processing, and visualization of high-fidelity rheological data alongside other critical process parameters like temperature and pressure. Centralization provides operators with real-time, actionable data presented in customized dashboards, significantly improving decision-making and operational control. Furthermore, centralizing this real-time viscosity data within the historian allows quality control teams to perform comprehensive post-batch analysis. They can correlate viscosity changes with ingredient variability, agitator speed, or thermal events, maintaining a continuous, detailed record essential for meticulous batch traceability and robust compliance documentation.
Integrating Real-Time Viscosity into IIoT Frameworks
The installation of a continuous, high-resolution inline ultra shear viscometer represents more than just a measurement upgrade; it is a fundamental step toward adopting Industry 4.0 principles. The provision of stable, high-accuracy rheological data digitally (via RS485) aligns perfectly with the current transformation toward the Industrial Internet of Things (IIoT). This high-fidelity data stream is essential for developing and training advanced control algorithms and machine learning models required for predictive quality control and dynamic process optimization. By integrating viscosity as a core component of the overall automation architecture, the personal care manufacturing facility can move away from static, fixed-parameter control toward agile, dynamic optimization, ensuring that shampoo viscosity and other rheological targets remain consistent regardless of inherent upstream or environmental variations.
The manufacturing of non-Newtonian fluids like shampoo and hair conditioner demands precision rheological control that traditional. It is highly recommended that production operations managers prioritize the procurement and integration of inline ultra shear viscometers with standard DCS/SCADA systems. This investment provides the essential high-fidelity data stream required for automated, predictive quality control, ensuring long-term product consistency and providing the necessary foundation for advanced digital manufacturing and hair conditioner manufacturing process optimization.
