Chocolate has long been a beloved delicacy around the world, enjoyed in countless forms. The global chocolate industry is a colossal market. As demand keeps rising, manufacturers face the pressure to uphold strict standards for both quality and production efficiency.
Effective chocolate viscosity measurement affects the flow, coating uniformity, and texture of chocolate products, whether in bars, confections, or enrobed goods. Inconsistent chocolate coating viscosity can result in uneven coatings, product defects, or processing inefficiencies, leading to increased costs and customer dissatisfaction.

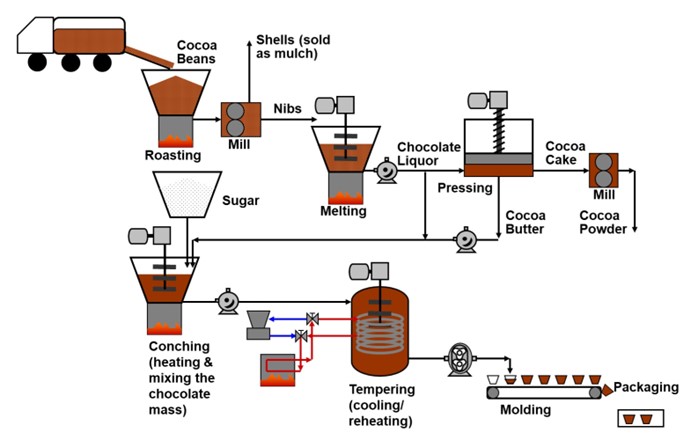

Chocolate Production Process & Phases for Viscosity Measurement
Chocolate production process involves initial processing, roasting, winnowing, grinding, conching, tempering and molding.

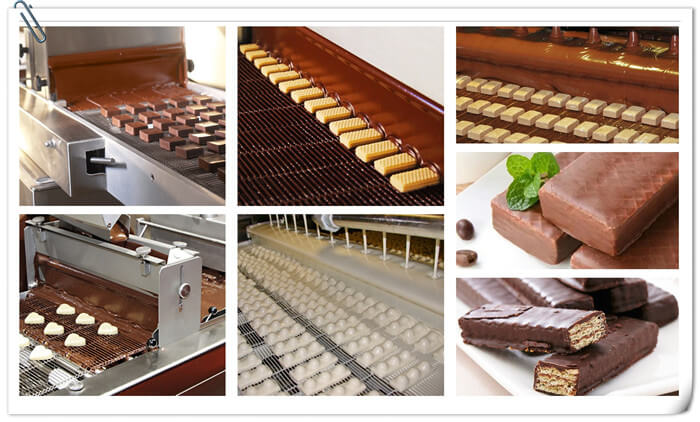

Chocolate Coating
*
Cocoa beans undergo precise roasting, are finely ground, and then blended with ingredients like sugar and milk powder.
This process reduces chocolate particle size, resulting in a smoother and more refined texture.
By precisely controlling cocoa butter crystallization, tempering delivers a glossy finish and the perfect snap.
Once tempered, the chocolate is molded into bars, shaped into pralines, or enrobed over other products, then cooled to solidify.
A key stage where chocolate is applied to various products, greatly enhancing both their visual appeal and flavor.
The final step guarantees that chocolate preserves its quality throughout transportation and retail.
Viscosity is relevant only in the liquid phase of chocolate, as it must be in a molten state to flow and be measured. The key stages include:
· Cocoa Liquor (Post-Grinding): After grinding cocoa nibs into cocoa liquor, viscosity is assessed to evaluate the flow properties of the base material.
· Refined Chocolate (During/After Conching): During conching, sugar, cocoa butter, and other ingredients are mixed, affecting viscosity. Measurements ensure the chocolate is smooth and flowable.
·Tempered Chocolate (Post-Tempering): After tempering, viscosity is checked to confirm the chocolate is suitable for molding, enrobing, or depositing.
Importance of Viscosity Measurement of Chocolate Coating
Viscosity measurement plays a pivotal role in the production of high-quality chocolate coatings, directly influencing the final product's appearance, texture, and consistency. In the enrobing process, where a liquid chocolate layer is applied over centers such as nuts, biscuits, or confectionery fillings, the viscosity determines how evenly and smoothly the coating flows. If the viscosity is too high, the chocolate becomes thick and resistant to flow, resulting in uneven coverage, excessive buildup in certain areas, or incomplete adhesion to the center. Conversely, if the viscosity is too low, the coating may drip excessively, leading to thin layers, wasted material, and a fragile shell that cracks easily.
Beyond aesthetics and coverage, viscosity directly impacts production efficiency and cost control. Chocolate coatings with inconsistent viscosity can disrupt high-speed enrobing lines, causing machine clogging, frequent downtime, or the need for manual adjustments. Moreover, the amount of chocolate picked up during enrobing—known as pickup weight—is tightly linked to viscosity. A slight deviation can alter the coating-to-center ratio, affecting not only texture and mouthfeel but also nutritional labeling and ingredient costs. For premium products, where consumers expect a balanced bite with a crisp snap and silky melt, maintaining target viscosity ranges (e.g., 1,200–2,000 mPa·s for dark chocolate coatings) is non-negotiable. Regular measurement using rotational viscometers allows real-time corrections through temperature adjustments or lecithin addition, ensuring batch-to-batch reproducibility.
Finally, viscosity measurement is essential for long-term product stability and shelf-life performance. Chocolate is a complex emulsion of cocoa solids, sugar, and fat, and improper viscosity often signals underlying issues such as poor particle dispersion, moisture ingress, or fat crystallization problems. Over time, coatings with incorrect viscosity are more prone to fat bloom—a whitish haze caused by cocoa butter migrating to the surface—or oil separation, both of which degrade sensory quality and consumer trust. By integrating viscosity testing into quality assurance protocols, manufacturers can predict and prevent these defects, delivering coatings that remain glossy, smooth, and indulgent from production line to pantry shelf. In essence, viscosity is not just a physical parameter—it is the guardian of chocolate coating excellence.
Chocolate Rheology: Factors Influencing Viscosity
Chocolate rheology is the science of how chocolate flows and behaves under processing conditions. Several factors impact chocolate syrup viscosity and chocolate liquor viscosity, including:
· Cocoa Butter Content: Higher levels reduce viscosity, improving flow but potentially affecting texture.
· Particle Size: Finer particles increase viscosity, requiring precise control during refining.
· Temperature: Fluctuations alter flow properties, necessitating accurate temperature monitoring.
· Shear Rate: Chocolate exhibits non-Newtonian behavior, where viscosity changes under different shear conditions.
· Moisture Content: Even small amounts of water can significantly increase viscosity.
· Emulsifiers: Ingredients like lecithin modify flow properties, requiring consistent monitoring.
A viscosity measurement instrument designed for real-time data collection ensures these variables are managed effectively, maintaining optimal chocolate viscosity throughout production.
Core Challenges in Viscosity Measurement
Implementing continuous chocolate viscosity measurement presents several technical and operational challenges:
· System Integration: Incorporating a viscosity meter for food into existing production lines without disrupting workflows or requiring extensive retrofitting.
· Physical Installation: Ensuring the instrument to measure viscosity withstands high temperatures, pressure, and rigorous cleaning protocols common in chocolate production processes.
· Measurement Accuracy: Achieving precise and stable readings under varying process conditions, such as temperature swings or high shear rates.
· Reliability and Stability: Maintaining consistent performance in demanding environments with minimal drift or calibration needs.
· Maintenance Requirements: Minimizing downtime with equipment that is durable and easy to maintain.
The Lonnmeter in-line process viscometer is specifically designed to address these challenges, offering robust, accurate, and reliable performance for food viscosity meter applications.
Learn About More Density Meters
More Online Process Meters
Lonnmeter Food Viscosity Meter
The Lonnmeter viscosity meter for food is an advanced viscosity measurement instrument tailored for real-time monitoring in the production process of chocolate. Its robust design and intelligent features make it the preferred choice for chocolate viscosity measurement in food processing, petrochemicals, and polymer industries.
Technical Specifications
|
Parameter |
Specification |
|
Viscosity Range |
1 - 1,000,000 cP |
|
Accuracy |
±2% ~ 5% |
|
Repeatability |
±1% |
|
Temperature Accuracy |
±1.0% |
|
Sensor Pressure Range |
< 6.4 MPa (Customizable >10 MPa) |
|
Power Supply |
24 VDC |
|
Output |
4-20 mADC (Viscosity, Temperature), Modbus |
|
Explosion-Proof Standard |
ExdIIBT4 |
|
Temperature Resistance |
< 350°C |
|
Material |
316 Stainless Steel |
The viscometer employs a conical sensor that oscillates at a specific frequency along its axial direction. As chocolate flows over the sensor, it shears the fluid, and the energy loss is calculated to determine viscosity. This vibration-based approach eliminates moving parts, seals, or bearings, ensuring durability and low maintenance. The electronic circuit converts energy loss into precise viscosity readings, displayed in real-time for immediate process adjustments. This design is particularly effective for monitoring chocolate coating viscosity, chocolate syrup viscosity, and chocolate liquor viscosity.
Key Features
· Real-Time Monitoring: Provides stable, repeatable, and reproducible measurements for consistent chocolate viscosity measurement.
· Durable Design: Simple mechanical structure ensures low maintenance and high durability, reducing downtime.
· Seamless Integration: Easily connects with intelligent control systems for automated process adjustments.
· Cost-Effective: Long-lasting design minimizes long-term operational costs.
· Hygienic Construction: 316 Stainless Steel and IP68 rating ensure compliance with food safety standards.
Strategic Deployment Locations
To maximize the benefits of the Lonnmeter viscometer, strategic placement in the production process of chocolate is critical. Below are key locations and their impact:
· Enrober/Coating Tank: Monitoring chocolate coating viscosity ensures uniform application on products like bars, truffles, or enrobed confections. Consistent viscosity prevents defects like uneven coatings or drips, improving product quality and reducing waste.
· Transfer Line: Measuring viscosity during chocolate transfer between tanks or processing units maintains flow consistency, preventing blockages and ensuring efficient throughput.
· Day Tank: Real-time viscosity data in storage tanks ensures homogeneity before processing, reducing batch-to-batch variations and enhancing consistency.
· Refiner/Conche Outlet: Controlling viscosity post-refining or conching optimizes texture and flow properties, critical for downstream processes like coating or molding.
· Tempering Unit: Monitoring viscosity during tempering ensures proper crystal formation, directly impacting the final product’s texture and shelf life.
Each deployment point enhances quality control, operational efficiency, and product consistency, making the viscosity meter for food a vital tool in chocolate production processes.
Benefits of In-Line Viscosity Measurement
The Lonnmeter in-line process viscometer offers transformative benefits for chocolate manufacturers:
· Precision Quality Control: Real-time data enables immediate adjustments, ensuring consistent chocolate viscosity and superior product quality.
· Waste Reduction: Accurate viscosity control minimizes over- or under-coating, saving raw materials and reducing scrap.
· Operational Efficiency: Automated monitoring eliminates manual testing, streamlining the production process of chocolate and reducing labor costs.
· Cost Savings: Durable, low-maintenance design lowers long-term operational expenses.
· Regulatory Compliance: Precise measurements support adherence to food safety and quality standards, critical for audits and certifications.
· Process Optimization: Integration with intelligent systems allows dynamic adjustments, improving overall production efficiency.
Elevate your chocolate production process with the Lonnmeter in-line process viscometer, the industry-leading viscosity measurement instrument for chocolate viscosity measurement. Contact Lonnmeter today to request a quote and discover how this food viscosity meter can enhance product quality, reduce costs, and optimize your operations. Act now to stay ahead in the competitive chocolate manufacturing industry.
