Continuous Density Measurement in Diesel Blending
The blending process stands as the final and most economically consequential operation within a petroleum refinery. The primary objective of this intricate process is to formulate a product that not only meets all required market specifications but does so at the minimum possible cost, thereby maximizing the refinery's overall profit margins.
The financial sensitivity of blending cannot be overstated. Any inefficiency or inaccuracy at this terminal stage can rapidly erode the profitability gains achieved through careful optimization of upstream units. This directly translates into lost revenue and underscores why a strategic investment in blending technology has a large impact on the refinery's bottom line.
Challenges and Risks in Traditional Diesel Blending
The Financial Cost of Inaccurate Measurement
One of the most significant and often overlooked financial risks in blending is the practice of "giveaway." Without continuous, real-time data on the blend's properties, operators must rely on intermittent laboratory samples and predictive models to control the process. To mitigate the risk of producing an off-spec product, a costly and time-consuming error, they are compelled to build in a safety margin by adding more of the expensive blending components than is strictly required to meet minimum specifications.
Operational Inefficiencies and Hidden Costs
The operational ripple effects of inaccurate measurement extend far beyond the immediate blending unit. A reliance on less precise methods, such as gauging tank levels, leads to poor scheduling and inventory management. This can result in significant demurrage costs—penalties incurred when a cargo ship is delayed due to a lack of available storage capacity.
The effects even cascade upstream: inconsistent feedstock quality stemming from poor blending control can lead to operational instability in upstream units, potentially risking the production of undesired byproducts like "shot coke" in the coker, which poses significant safety and operational challenges.
Economic Risk of Over-blending for Regulatory Compliance
The global shift toward more sustainable energy solutions has led to an increased reliance on biofuels, which are frequently blended with conventional diesel to meet environmental regulations. While these biofuels offer environmental advantages, they come at a considerable economic premium. The energy delivered by biodiesel, for instance, can cost 70% to 130% more than fossil diesel. Additionally, biodiesel typically has a higher density than its fossil counterpart.
This situation presents a unique and costly challenge for refiners. Without the ability to continuously verify the final blend's properties, particularly its density, they must over-blend the expensive biofuel to ensure they meet mandatory regulatory minimums and avoid fines. The absence of real-time measurement transforms a regulatory requirement into a continuous, mandated giveaway of a high-cost component.
Process and Integration of Inline Density Meters
The Mechanics of Continuous Density Measurement
Inline density meters, particularly those based on tuning fork technology, operate on a fundamental principle of physics to provide real-time, continuous measurement. The core of the device is a miniature, stainless-steel tuning fork, which is caused to oscillate at its natural resonant frequency by a piezoelectric crystal. As the fluid being measured flows around the vibrating prongs, its mass "loads" the fork, causing a change in its oscillation frequency. A second piezoelectric crystal listens and measures this altered frequency. An embedded processor, using a built-in temperature sensor for compensation, translates this frequency shift into a highly precise density value.

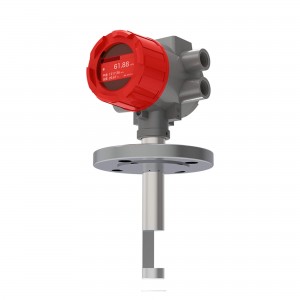

A representative device, such as the Lonnmeter tuning fork density meter, can measure a fluid with a viscosity of less than 2000 centipoise (CP) over a density range of 0−2g/cm3 with a measurement accuracy of 0.003g/cm3 and a resolution of 0.001. These instruments are robust and designed for demanding industrial environments, with a wetted material of 316 stainless steel and a high explosion-proof rating of Exd II BT6, making them suitable for hazardous refinery operations.
Have questions about optimizing production processes？
Seamless Integration into the Process Control System
The integration of an inline density meter into a refinery's control system is a critical step. The most common and reliable method of communication is via a 4-20mA current loop signal, which is proportional to the measured density. This analog signal is a standard input for most Programmable Logic Controllers (PLCs) and Distributed Control Systems (DCS).
Best Practices for Installation and Configuration
The performance of an inline diesel density meter is highly dependent on its physical installation and the surrounding process conditions. To ensure the highest accuracy, several key factors must be considered:
Placement: The sensor should be positioned in a location where the fluid is well-mixed and representative of the process stream. Optimal locations are typically downstream of a pump or static mixer, and away from dead legs or recirculation pockets.
Sensor Submersion: The sensing element must be fully submerged in the fluid at all times. In low-flow or partially filled pipelines, horizontal installation or placement in a pipe elbow may be necessary to ensure the sensor remains fully wetted.
Fluid Dynamics: The presence of air bubbles or entrained gas can significantly compromise density readings, as gas has a much lower density than liquids. To mitigate this, a vertical installation with the prongs facing sideways allows gas to migrate away from the sensor. Raising the back-pressure with a control valve can also help keep dissolved gases in solution, particularly on hot or flashing services.
Vibration and Interference: The density meter's performance can be affected by external mechanical vibration from nearby pumps or agitators. Proper grounding of the instrument and the use of shielded signal cables run in separate conduits are essential for stable operation.
Learn About More Density Meters
More Online Process Meters
Technical Advantages of Modern Inline Density Meters
Comparative Analysis of Density Meter Technologies
The selection of the right technology for continuous density measurement is a critical engineering decision that depends on specific application requirements. While several technologies are available, the most common for inline measurement are tuning fork, Coriolis, and capacitive density meters.
The tuning fork density meter is notable for its fast response time, delivering a fresh density reading every 0.1 to 1 second. It has a compact footprint and, with no moving parts, offers excellent reliability and repeatability.
The Coriolis meter, considered the industry's gold standard, is a versatile instrument that provides a direct and simultaneous measurement of both true mass flow and density.. However, its higher capital cost and potential maintenance issues with non-lubricating fluids may make it a less cost-effective solution if a separate flow meter is already in place.
Capacitive density meters are another robust option, relying on a capacitive differential pressure sensor. This technology is highly immune to plant vibrations and is not affected by vessel level variations. However, its applicability can be limited to certain fluid types, and it requires careful consideration of installation to prevent residue accumulation.
Reliability and Reduced Maintenance
A key advantage of the tuning fork design is the absence of any mechanically moved parts in its wetted section. This intrinsic simplicity directly translates to enhanced reliability and significantly lower maintenance requirements compared to older mechanical flowmeters. The stability of the technology means it does not require the frequent and costly proving that instruments like turbine meters do.
The adoption of continuous density measurement in diesel blending is a foundational step toward modernizing refinery operations. It represents a critical shift from a reactive, manual, and risk-prone process to a proactive, automated, and profit-driven one. This technology empowers refiners to mitigate operational and financial risks, eliminate giveaway, reduce hidden costs, and unlock new revenue streams by maximizing plant throughput and operational agility. Contact Lonnmeter right now and ask a for a customized continuous density measurement solution.
