The viscosity of the ceramic slurry serves as the primary gateway to casting quality; it governs the coating process and the subsequent structural integrity of the shell. As the measure of flow resistance, viscosity determines the dynamic interaction between the slurry and the wax pattern, fundamentally controlling the outcome of layer deposition.
I. The Precision Requirement in Foundry Operations
Investment Casting: Concept Introduction and Relationship with Lost Wax Casting
The manufacturing technique recognized globally as investment casting is a cornerstone of modern high-specification component production, delivering parts with exceptional mechanical integrity and geometric complexity. This industrialized methodology traces its ancestry to the ancient practice of lost wax casting, a technique spanning thousands of years. The fundamental principle remains the creation of a sacrificial wax pattern that is subsequently melted out to create a cavity for the molten metal. In historical terms, the initial practice, lost wax casting ceramic slurry, often involved rudimentary molds made of beeswax and clay, typically suited for jewelry or ornamental art.

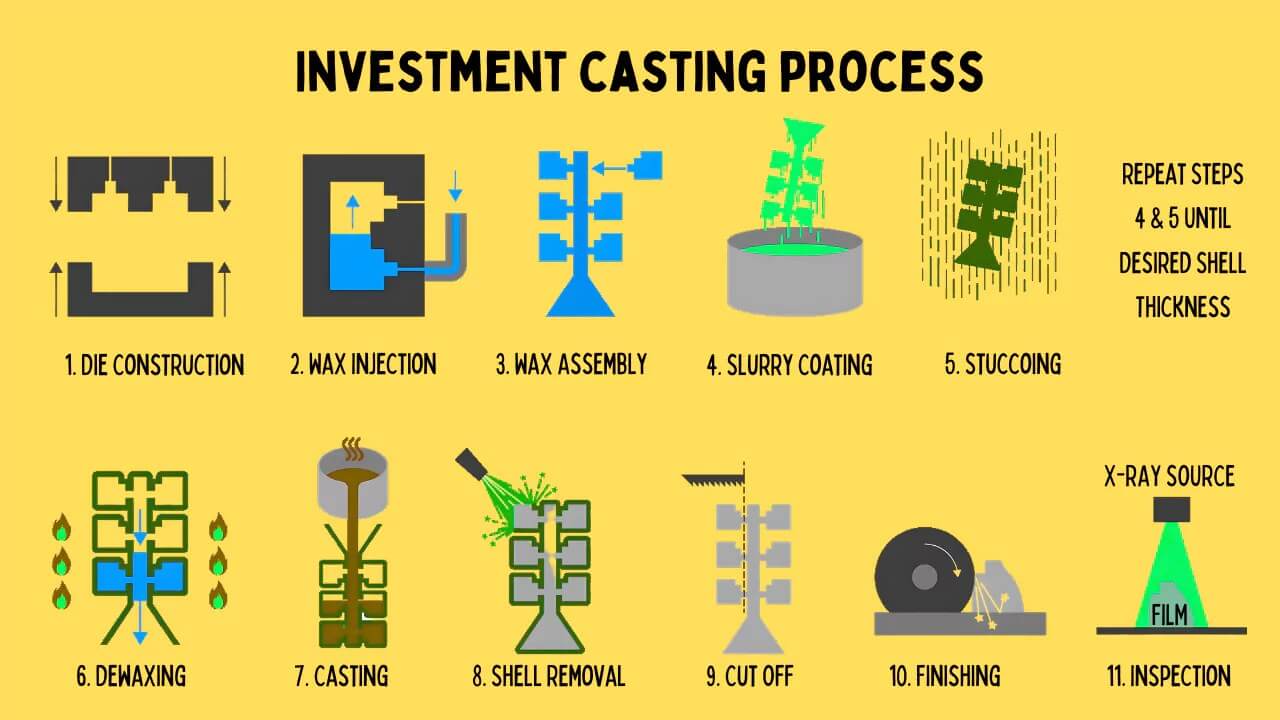

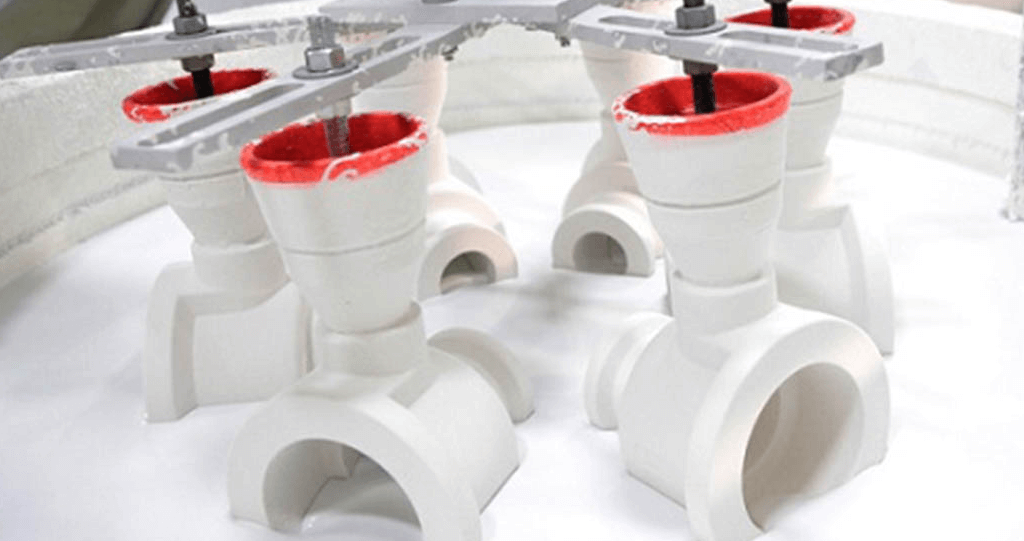

Investment Casting
*
The contemporary practice, however, represents a highly mechanized and controlled approach. The terminology reflects this shift: what is investment casting distinguishes itself by focusing on the crucial step of "investing" the wax pattern in the specialized ceramic casting slurry, which ultimately forms the robust, high-temperature ceramic shell. Modern foundries utilize the investment casting process to produce units with superior dimensionality, thinner walls, and tighter tolerances than the older methods, often eliminating the need for extensive post-casting machining.
Pinpointing the Overarching Industry Challenges Where Precise Control is Paramount
Despite the inherent precision of the process, maintaining consistency in high-volume, high-value manufacturing presents continuous challenges. For sectors demanding exacting standards, any variability in the shell-building stage translates directly into potentially catastrophic component failure or economically devastating scrap rates.
One core challenge is ensuring material integrity. When casting advanced superalloys, the quality of the ceramic shell must prevent interfacial reactions and minimize porosity, which directly impacts the final component’s tensile strength and mechanical properties. A second critical challenge is managing the cost of complexity. The tooling cost for complex parts is initially high, and the materials themselves are expensive. Consequently, casting defects resulting from flawed shells lead to significant financial write-offs and reduced overall productivity. The necessity for objective, data-driven process inputs, rather than subjective manual checks, drives the overarching industry challenge of achieving consistent repeatability and standardization, especially given the lengthy lead times associated with complex parts and large production runs. The operational mandate for modern foundries is to achieve zero defects, and the integrity of the ceramic shell is the singular gateway to that objective.
The evolution of modern industrial casting—handling larger parts and higher-stress alloys—has intensified the focus on the shell coating process. Since a component defect in a medical implant or an aircraft engine blade is intolerable, the stability of the ceramic shell must be absolute. The initial coat of ceramic slurry for lost wax casting, therefore, acts as the primary determinant of subsequent part quality, making its control arguably the most critical variable in the entire production chain.
II. The Science of the Ceramic Casting Slurry
Ceramic Casting Slurry: Composition and Rheological Foundation
The ceramic slurry for investment casting is a highly engineered colloidal suspension designed to transfer the intricate detail of the wax pattern into a durable ceramic mold. It is a complex, multi-phase system whose performance characteristics—collectively known as rheology—are defined by the careful balance of its liquid and solid constituents.
Main Components and Importance of Ceramic Slurry
The functional relationship between slurry components and viscosity is direct and continuous. Changes in the concentration, structure, or interaction between any components will instantly alter the slurry’s flow behavior.
Refractories (Solids Content): These form the structural matrix of the shell. Common materials, selected for their thermal stability, include Zircon, Fused Silica, Alumina, and Aluminosilicates such as mullite or calcinated kyanite. The concentration of these solids has the greatest influence on the system’s behavior. For high-detail face coats, the particle size of the refractory ceramic material is exceptionally fine, often 600 mesh (27 μm) or less. The surface geometry of these particles, such as lash-shaped corundum powder, is engineered to improve the face-coat surface smoothness and enhance non-wettability against superalloys, which helps hinder interfacial reactions between the shell and molten metal. Viscosity is a direct function of this fine solids loading.
Binders (Liquid Medium): The binders, typically colloidal silica or ethyl silicate solutions, act as the liquid medium and the cementing agent. They facilitate the "wet-out" of the wax pattern and lock the refractory particles into place after drying. Binder stability is monitored via its own solids content and pH. The viscosity of the final slurry is highly dependent on the stability and characteristics of the colloidal suspension.
Additives: Various chemical packages are included to refine performance. Dispersants, like HPMC (Hydroxypropyl Methylcellulose), are used to promote uniform distribution of fibers or particles and increase the stability and viscosity of the suspension. Gelling agents and specialized blends of refractory materials—such as using a denser, finer refractory material alongside a lighter, coarser one —are employed to ensure the denser particles migrate downward to form a smoother, more accurate mold surface. This sophisticated system design highlights the complexity of rheological control, where even minor fluctuations in component ratios can compromise the designed settling or suspension behavior.
Understanding the Non-Newtonian Behavior of Slurries
Foundry slurries are complex, non-Newtonian fluids, meaning their viscosity changes depending on the shear rate (e.g., stirring speed) applied. They typically exhibit shear-thinning characteristics. Viscosity itself is the quantitative measure of a fluid's inherent resistance to flow and deformation.
The critical issue in continuous processing is that the liquid components (water or solvents) are highly volatile. To minimize volatilization, some foundries must maintain slurry temperatures at or near extremely low levels, such as -93 ℃. However, in most applications, evaporation is a constant factor that continuously concentrates the refractory solids and the binder, leading to a perpetual upward drift in viscosity. This continuous change, combined with the inherent abrasive nature of the fine ceramic particles, makes the slurry tank a dynamically unstable, high-maintenance environment where manual, intermittent control methods are inherently incapable of maintaining the required standard. A continuous process monitor is the only reliable countermeasure to this unavoidable environmental volatility.
III. Importance of Consistent Ceramic Slurry Viscosity
The Viscosity-Thickness-Wet-Out Nexus
Viscosity directly controls two physical phenomena that are critical to defect prevention:
Wet-out and Coverage: Viscosity and solids content affect the slurry's "wet-out" on the pattern. If the viscosity is too low, the fluid runs off too quickly, potentially failing to penetrate intricate contours or corners, which results in incomplete coverage or pinholes. Uniform coverage is essential to avoid localized roughness spikes.
Layer Thickness: There is a direct proportionality between viscosity and the thickness of the deposited layer. A thicker slurry (higher viscosity) runs off slower, leaving behind a thicker coating. Since the shell is engineered through multiple dips—often using several slurries of increasing viscosity to build sufficient strength—deviations in the viscosity of any single slurry coat propagate throughout the entire shell structure.
Impact on Surface Finish and Dimensional Accuracy
Fluctuations outside the required viscosity tolerances directly cause quality failures:
Surface Finish (Ra): Poor rheology control can lead to surface flaws. For example, if viscosity is too low, insufficient wet-out can allow pinholes, increasing surface roughness and leading to potential metal penetration during pouring. Conversely, slurry instability, such as excessive foaming or microgel formation, can also result in surface imperfections and defects.
Dimensional Accuracy (Tolerance): The ability to meet tight tolerances, such as 0.1 mm for the first 25 mm of a component, is compromised when viscosity varies. Non-uniform thickness across the casting, caused by slurry running too quickly (low viscosity) or too slowly (high viscosity), introduces variability in the final shell dimensions. This directly impacts the finished part's dimensional accuracy, increasing the risk of non-conforming parts.
Viscosity and Shell Integrity (Green Strength, Permeability)
Viscosity control also governs the internal microstructure of the shell. When viscosity is excessively high, it can lead to the formation of a rigid gel network among the refractory particles. This microstructure can contribute to the creation of continuous microcracks, which subsequently reduce the green strength of the shell and increase its permeability. Defects such as cracking during the dewaxing stage or spalling within the primary coat are consequences of these structural weaknesses. The inability to maintain coating quality adversely impacts the shell’s thermal conductivity, chemical reactivity, and structural integrity.
To illustrate the critical causality between process control failure and manufacturing defects, the primary modes of failure associated with viscosity deviation are summarized below.
Conceptual Model of Viscosity-Defect Chain
|
Viscosity Deviation |
Rheological Consequence |
Operational Outcome |
Primary Casting Defects |
Macro-Level Impact |
|
Viscosity too Low (Thin Slurry) |
Rapid runoff; Low solids content; Poor adhesion; Foaming/Air Entrapment. |
Thin shell layers; Insufficient coverage; Premature drainage before stucco application. |
Pinholes; Metal Penetration; Localized roughness; Reduced shell strength; Flash. |
High scrap rates; Catastrophic structural defects. |
|
Viscosity too High (Thick Slurry) |
Slow drainage; High yield stress; Difficult air release; Rapid particle settling. |
Bridging in tight holes/slots; Non-uniform, excessive thickness; Delayed drying. |
Bridging/Metal Penetration in features; Inclusion defects (spalling); Dimensional distortion; Hot tears/Shrinkage. |
Dimensional failures; High rework/repair costs. |
The surface fidelity is set by the initial primary coat slurry, which often operates under the tightest controls. Because this slurry is continuously exposed and subject to evaporation throughout a production run, viscosity drift is chronic. If the foundational layer is compromised by poor rheological control, all subsequent reinforcing layers are built on an unstable base, guaranteeing quality inconsistency throughout the production batch. This makes the primary slurry the highest-leverage point for quality intervention.
IV. Challenges in Continuous Slurry Viscosity Measurement
The necessity for continuous, precise viscosity measurement is driven by the severe limitations of traditional slurry control methods, which introduce systemic instability into the investment casting process.
For Process Engineers and QC Specialists, the traditional measurement method—the flow cup—presents significant technical obstacles. This method is indirect, measuring efflux time rather than true viscosity, and is highly sensitive to external variables like temperature, operator technique, and specific gravity. This lack of accuracy and repeatability is incompatible with the tight tolerances demanded by modern casting applications. Furthermore, the flow cup check is intermittent, performed at discrete intervals. During the hours between these manual checks, evaporation causes continuous viscosity drift, meaning a large quantity of material is coated under non-conforming conditions before a corrective adjustment can be manually executed. This inherent time lag renders the control retrospective rather than predictive, preventing effective real-time process intervention.
Compounding this difficulty is the physical environment of the slurry tank. The presence of fine, hard, and abrasive refractory ceramic material causes conventional sensors and probes to wear down quickly or become rapidly fouled with deposits. This requires frequent, disruptive manual cleaning and calibration, which increases maintenance costs and operational downtime.
For Management (Operations and Financial), these technical pain points translate directly into financial instability. The lack of real-time control results in high and unpredictable scrap rates. When high-value alloys are used, uncontrolled defects such as cracking, inclusion, misrun, or shrinkage caused by inconsistent shells lead to significant and often unsustainable financial losses. Additionally, manual viscosity adjustment often involves inefficient, over-compensatory dosing of expensive binders and solvents, increasing material waste. The cumulative effect of manual checks, rework, and unpredictable defect rates ultimately compromises throughput and prolongs overall process timing, limiting the ability to scale production efficiently.
Limitations of Inferential Measurements (e.g., Specific Gravity/Density)
It is crucial to understand the scientific distinction between density measurement and viscosity measurement, as one cannot reliably substitute for the other in rheological control.
A slurry density meter measures mass per unit volume, typically used to determine the concentration of solids within a suspension. While density measurement (often monitored through specific gravity, tracking binder solids) is one aspect of a complete slurry control program, it offers only an inferential view of performance. Density devices, even advanced systems like a non nuclear slurry density meter used in industries like mining or dredging, do not capture the fluid’s flow characteristics.
Viscosity, conversely, measures the internal friction, or resistance to flow and deformation. Although evaporation increases both density and viscosity, complex changes in the slurry—such as microgel formation, particle settling, flocculation, or even temperature shifts—can dramatically alter the fluid’s flow performance (viscosity) without a corresponding, easily measurable shift in overall density. For controlling the dynamic process variables of coating thickness, wet-out efficiency, and drainage rate—the primary functions of the slurry—viscosity is the indispensable, direct parameter. Relying solely on a density proxy leaves the foundry exposed to rheological instability and unpredictable coating outcomes.
This inherent instability in the shell building phase represents a significant barrier to the full adoption of industrial automation If the fundamental input (the shell structure) is unreliable due to uncontrolled viscosity, attempting to optimize downstream processes will yield unreliable and unpredictable results.
Learn About More Density Meters
More Online Process Meters
V. The Lonnmeter In-Process Viscometer Solution
Lonnmeter In-Process Viscometer: Technology and Performance
Lonnmeter technology is designed for rigorous inline deployment within industrial processes, delivering accurate and reliable results directly within the manufacturing line, thus eliminating repeat work and manual errors.
Core Technology Principles: These instruments typically employ high-precision vibrational or resonant technology. A sensing element, often a resonant rod, is submerged into the fluid and oscillated. The energy damping or the frequency shift required to maintain oscillation is measured, which provides a direct, objective calculation of the fluid's viscosity. This approach is superior to flow-based methods because it measures the intrinsic rheological property regardless of flow characteristics within the tank.
Addressing Abrasiveness and Fouling: A critical differentiator is the robustness of the sensor design. Lonnmeter viscometers are designed for durability, featuring unique mechanical structures that withstand the demanding conditions of field operation, including exposure to pasty fluids and abrasive slurries. By incorporating features that prevent blockage and scaling—analogous to technologies that use integrated vibration to deter deposits—the sensors operate for extended periods, minimizing maintenance requirements and ensuring consistent cleanliness for reliable measurement. This capability is essential for managing dense, fine refractory powders.
Measurement Precision and Response Speed: The system offers highly accurate viscosity readings delivered in real time, making it possible to instantly detect composition shifts caused by evaporation, temperature fluctuations, or ingredient addition. This quick response speed allows process engineers to transition from reactive control (correcting defects after they occur) to proactive management, where effective corrective measures are based on scientific and accurate data.
Stability and Reliability: By integrating the measurement directly into the process line, the Lonnmeter system provides continuous stability, mitigating inter-shift variability and the subjective errors inherent in manual testing. This consistent reliability is foundational for implementing the closed-loop control systems necessary for advanced manufacturing environments. The sensors are specifically designed to operate for years with minimal maintenance, maximizing uptime and reducing operational risk.
VI. Benefits of Continuous Viscosity Monitoring
The adoption of the Lonnmeter system converts ceramic slurry preparation from an unpredictable bottleneck into a stable, controlled stage of the manufacturing process. Continuous, precise monitoring is the necessary step toward maximizing quality, consistency, and automation in shell building.
Enhanced Process Stability: Real-time data collection enables the precise monitoring and maintenance of the slurry at the required temperature and viscosity, directly counteracting the immediate and continuous effects of solvent evaporation and environmental temperature changes. This consistent stabilization of the ceramic slurry for lost wax casting is crucial for high-reliability manufacturing sectors, providing robust evidence necessary for quality compliance and material provenance documentation.
Immediate, Automated Corrective Action: Continuous monitoring allows the sensor output to be integrated into an automated feedback loop. The viscometer's data automatically triggers metered dosing systems to inject precise amounts of solvent or additives to maintain the set point. This capability for automated corrective actions eliminates human error, removes the destructive time lag of manual checks, and ensures product consistency throughout long production cycles.
Improved Shell Consistency: Consistent slurry rheology translates directly to predictable coating behavior. This ensures uniform layer deposition thickness and optimized wet-out characteristics across all dips, whether four, six, or more. Achieving this consistency fundamentally reduces the occurrence of viscosity-related shell defects, including bridging, ceramic inclusion, misrun, and cracking, which are common issues impacting the quality of the final cast products. By stabilizing coating quality, the foundry enhances shell strength, permeability, and structural integrity, leading to higher quality castings and reduced production lead time and cost.
VII. Macro-Level Operational and Economic Advantages
The implementation of continuous viscosity control using advanced instrumentation provides significant macro-level benefits that extend far beyond simple quality assurance, driving efficiency and profitability by stabilizing what was previously a volatile process parameter.
Minimizing Scrap and Rework (Defect Reduction): The most direct economic advantage is the reduction in defect rates. By proactively ensuring shell integrity and preventing flaws caused by inconsistent slurry (such as bridging, poor wet-out, or dimensional distortion), foundries drastically lower the amount of scrap and the need for costly rework. This impact is multiplied when working with expensive, high-performance materials like nickel-based superalloys or cobalt-based alloys. Reducing the frequency of defects like cold shut and shrinkage enhances operational predictability.
Optimizing Material Utilization: Automation ensures that corrective measures are based on scientific necessity. Automated dosing systems introduce precise volumes of expensive binders and additives based on real-time Lonnmeter readings, eliminating the over-adjustment and material waste commonly associated with imprecise manual control.
Increasing Throughput and Predictability: By stabilizing the shell building process, the Lonnmeter In-Process Viscometer eliminates unscheduled process interruptions, manual checking downtime, and delays caused by having to discard or correct flawed shells. This optimization enhances production efficiency, guaranteeing a more predictable and often shorter production lead time for high-quality ceramic shells. The resultant agility in dealing with production variants is a key competitive advantage.
Achieving Superior and Consistent Quality Metrics: Fundamentally, continuous viscosity control allows foundries to consistently produce shells that yield components meeting or exceeding the tightest requirements for dimensional accuracy, surface integrity, and mechanical performance. This ability to consistently produce reliable, repeatable, high-specification castings empowers clients in critical sectors to innovate, confident that the foundry process is secured by data-driven quality assurance.
The Lonnmeter In-Process Viscometer provides the necessary technology to bridge this gap, offering a robust, low-maintenance, real-time solution engineered for the harsh, abrasive environment of the slurry tank.
To analyze your existing process variability, assess the immediate opportunities for defect reduction, and map the integration of continuous viscosity monitoring into your shell room operations, we invite your technical and management teams to Request a Free Technical Consultation. This specialized consultation will provide a detailed, data-driven strategy tailored to leverage the Lonnmeter system for sustained quality and efficiency gains.
