Precise viscosity measurement weights in underfill, die attach, and encapsulation of semiconductor packaging for optimal precision and reliability. Underfill constitutes an epoxy-based compound that occupies the interstitial space between a semiconductor die and its substrate or printed circuit board, fortifying solder interconnections against thermomechanical strains arising from disparate coefficients of thermal expansion. The flip chip architecture positions the die active-side down, establishing direct electrical links through solder bumps, which facilitates denser integrations over conventional wire-bonding approaches. Underfill bolsters reliability by evenly dispersing stresses from thermal fluctuations, safeguarding joints from wear, impacts, oscillations, and contaminants such as humidity, thereby prolonging operational endurance across diverse sectors from mobile devices to vehicular systems.
Viscosity of Adhesives
*
Importance of Adhesive Viscosity in Underfill, Die Attach, and Encapsulation
Mastering adhesive viscosity emerges as a fundamental strategy in semiconductor assembly lines, directly influencing the uniformity of flow, completeness of coverage, and absence of flaws in semiconductor packaging underfill, die attach semiconductor, and pcb encapsulation. Optimal glue viscosity measurement averts complications like air pockets, inconsistencies, or partial infusions that erode mechanical robustness and heat conduction. Harnessing sophisticated instruments such as the Lonnmeter viscosity meter for glues or adhesives empowers fabricators with instantaneous oversight, permitting exact modulation of adhesive dynamics to align with rigorous packaging prerequisites, ultimately elevating yield rates and device steadfastness.
What Is Underfill in PCB?

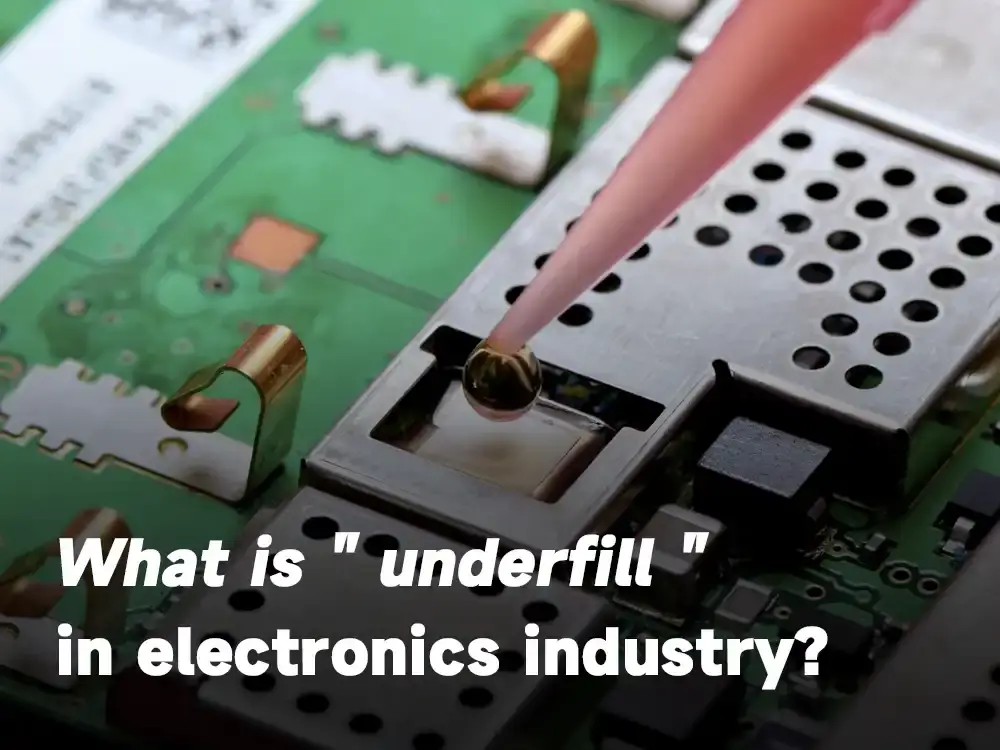

Delving into what is underfill in pcb uncovers a resinous epoxy or polymeric substance administered to shroud the inferior aspect of mounted elements, especially in flip chip arrangements on circuit boards. This substance buttresses solder bonds, dampens mechanical tensions, and shields from ambient aggressors including dampness or thermal variances. By permeating voids amid the die and base, it augments heat dispersal and architectural firmness, proving indispensable for compact, high-performance configurations in cutting-edge circuitry.
Flip Chip Underfill Process

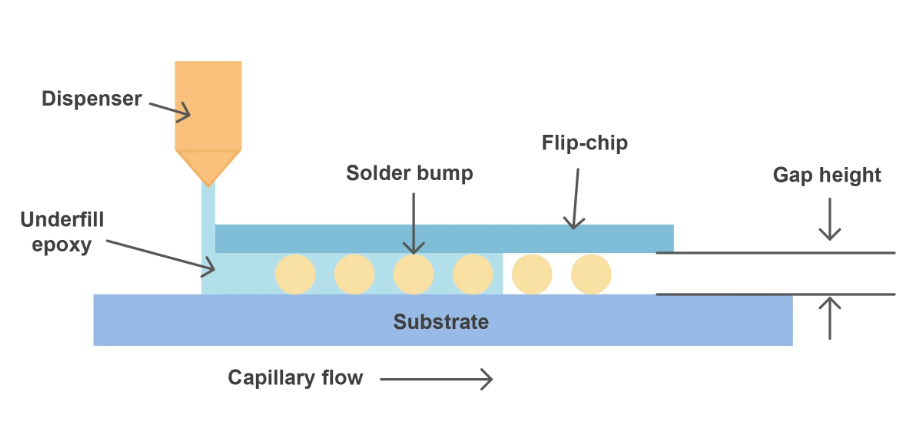

Executing the flip chip underfill process entails allocating a fluid epoxy of moderated viscosity along the inverted die's margins post-soldering, capitalizing on capillary forces to infiltrate diminutive clearances among solder protuberances prior to solidification via heat treatment. Refinements like substrate pre-warming expedite permeation, necessitating stringent viscosity governance to circumvent gas inclusions and secure impeccable outcomes. Methodologies such as linear or perimeter dispensing configurations synchronize adhesive progression with enclosure contours, curtailing imperfections and amplifying endurance against cyclic heating.
Die Attach Process in Semiconductor
The die attach process in semiconductor encompasses affixing an unencased die to a carrier or frame employing conductive or insulating bonds, like epoxies or fusible alloys, to guarantee effective heat and current transference. This foundational phase, vital for ensuing interconnections or sheathing, mandates accurate adhesive deposition through robotic handling to evade cavities and uphold linkage soundness. Viscosity oversight proves crucial to deter distortion and assure uniform adhesion, bolstering mass fabrication sans reliability concessions.
Encapsulation Process in Semiconductor
Within the encapsulation process in semiconductor, protective resins envelop the die and linkages, erecting a barrier against physical harm, moisture ingress, and thermal deterioration via methods like pressurized molding, frequently augmented by evacuation to expel voids. Viscosity regulation is paramount for attaining minimal contraction, elevated particulate formulations that optimize thermal evacuation and sustain enclosure resilience under adverse circumstances.
Consequences of Uncontrolled Viscosity
Deviations in viscosity precipitate grave anomalies, encompassing particulate sedimentation yielding irregular strata, intensifying thermal mismatches, interfacial separations, and expedited joint degradations. Erratic levels foster cavities or deficient infusions, instigating fissures amid thermal oscillations and inflating rectification expenditures. Such variances further aggravate enclosure warping, undermining bonds and fostering erosion from humidity, which astute fabricators neutralize via diligent surveillance to preserve enduring efficacy.
Viscosity Measurement Technologies
Contemporary viscosity assessment in adhesives leverages diverse mechanisms, prominently vibrational probes that gauge fluid opposition sans mechanical attrition, furnishing uninterrupted, precise metrics in demanding milieus. These inline apparatuses, diverging from sporadic sampling via cups or rotational devices, proffer immediate insights into non-Newtonian traits like shear dilution or time-dependent flow, indispensable for adhesives in semiconductor workflows. Such innovations facilitate dynamic alterations, harmonizing with automation to curtail discrepancies and bolster procedural fidelity.
Role of Viscosity in Flow Dynamics
Viscosity profoundly sways infusion durations and uniformity in underfill, where augmented levels from particulate inclusions protract permeation yet fortify mechanical attributes post-hardening. In die attachment and encapsulation, it dictates bond potency and protective efficacy, with temperature-induced reductions necessitating compensatory tactics to sustain optimal dispersion sans excesses or shortages, thereby mitigating risks like over-penetration or clumping.
Learn About More Density Meters
More Online Process Meters
Lonnmeter Viscosity Meter for Glues or Adhesives
The viscosity meter for glue, exemplified by Lonnmeter, delivers a resilient apparatus for perpetual adhesive attribute surveillance. Employing oscillatory sensing, it quantifies resistance spanning 1 to 1,000,000 cP with ±2% ~ 5% accuracy and swift feedback, apt for rigorous settings including elevated pressures or hazardous zones. Its adaptable probes and facile assimilation into conduits or vessels render it exemplary for upholding adhesive uniformity in mechanized semiconductor fabrication sequences, encompassing epoxies, hotmelts, and starch variants.
Applications in Adhesive Processes
Lonnmeter extends to myriad sectors like electronics and automotive, overseeing glue in dispensing, layering, or bonding operations. In semiconductor realms, it scrutinizes epoxies during underfill and encapsulation, ensuring seamless integration into pipelines or mixers for ceaseless data, adaptable to non-Newtonian behaviors and extreme thermal scopes up to 350°C.
Technological Features
Built with robust stainless constructs devoid of kinetic components, Lonnmeter withstands impurities while interfacing via Modbus for automated orchestration. Its vibrational core oscillates at defined frequencies to discern viscosity and density shifts, enabling instantaneous tweaks in HMA formulations or epoxy blends, fostering precision in high-stakes assemblies.
Benefits
Incorporating viscosity quantification into packaging methodologies engenders profound advancements in productivity, dependability, and fiscal prudence. By preemptively tackling viscosity drifts, producers refine adhesive deployment, diminish anomalies, and amplify holistic manufacturing yields, with empirical reductions in discards and operational halts.
|
Benefit |
Description |
Impact on Processes |
|
Real-Time Monitoring |
Perpetual tracking of viscosity deviations |
Averts cavities, refines flow dominion in underfill |
|
PLC/DCS Integration |
Mechanized data circulation for variable harmonization |
Diminishes manual encroachments, elevates proficiency in die attach |
|
Defect Prediction |
Prognosticating concerns like cavities via trend scrutiny |
Curbs rectifications, augments yield in encapsulation |
|
Smart Automation |
Algorithmic refinements for peak execution |
Warrants dependability, underpins anticipatory upkeep |
|
Quality Consistency |
Uniform batch attributes for superior adhesion |
Enhances reliability in semiconductor packaging |
|
Waste Reduction |
Minimized surplus via precise control |
Lowers costs and environmental impact across processes |
Real-Time Viscosity Measurement
Real-time viscosity measurement permits swift identification of property alterations, sanctioning expeditious modifications to preserve ideal flow and infusion traits. This aptitude curtails flaws such as cavities or effervescences, guaranteeing uniform deployment in underfill and encapsulation, culminating in superior merchandise homogeneity and abated squanderage in prolific environments, potentially slashing rejects by a quarter in refined configurations.
Integration to PLC/DCS System
Effortless integration to PLC/DCS system expedites automated viscosity governance by relaying metrics through analog or digital conduits like Modbus. This linkage synchronizes adhesive conduct with fabrication variables, instigating timely retorts that augment functional productivity and truncate interruptions across underfill, die attach, and encapsulation methodologies.
Parameter Adjustment, Defect Prediction, and Smart Control
Sophisticated oversight undergirds parameter adjustment, defect prediction, and smart control by exploiting data trajectories to prognosticate concerns like cavity genesis or sedimentation. Computational frameworks dissect contemporaneous inputs to initiate anticipatory rectifications, assuring impeccable assemblies and expediting operations via cerebral mechanization, concurrently curbing material extravagance by 15-20% and fostering eco-conscious practices.
Quality Consistency and Waste Reduction
Perpetual surveillance upholds batch uniformity, elevating adhesive efficacy in attributes like adhesion tenacity and thermal fortitude, pivotal for semiconductor durability. This curtails squander through minimized surplus application, diminishing material outlays and ecological footprints, while prognostic upkeep derived from trends abbreviates cessations, amplifying scalability and regulatory adherence.
Propel your semiconductor packaging endeavors with meticulous viscosity dominion. Engage us forthwith for a bespoke request for quotation to infuse Lonnmeter’s vanguard viscosity resolutions into your precision automated underfill, die attach, and encapsulation regimens, warranting unparalleled steadfastness and proficiency.
